German Standard Industrial Cable H03V2V2-F/H03V2V2H2-F
Get A Quote
Product Inquiry

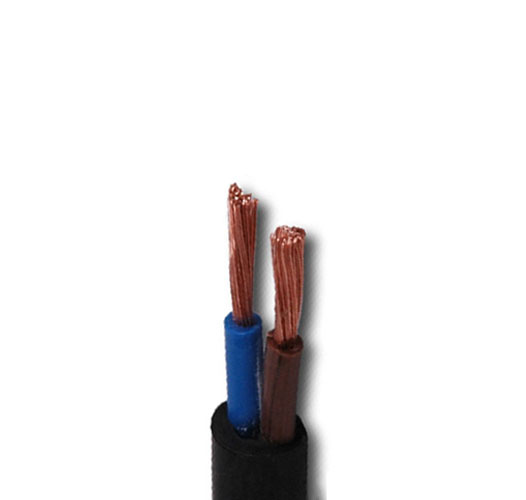

Product Picture
Product name
British Standard Industrial Cable 6192Y/6193Y to BS 6004
German Standard Industrial Cable H03V2V2-F/H03V2V2H2-F
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
These cables are suitable for domestic premises, kitchen, office for light service or light portable apparatuses. With their special insulation and sheath compounds these cables are adapt for apparatus in kitchen and heating and for use in zones with high temperatures (like lighting system apparatuses) without contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and agricultural buildings or non-domestic portable tools. The maximum conductor temperature in normal use: 90°C.While high temperature use, skin contact must be avoided.
Standard and Approval
<HAR>HD 21.12; HD 308 S2 DIN VDE 0281 part 1, part 12; DIN VDE 0293 part 308;
DIN VDE 0295 CEI 20-20/12, CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267), EN50265-2-1
Technical Characteristics
- Working voltage: 300/300 volts
- Test voltage: 3000 volts
- Flexing bending radius: 15 x Ø
- Static bending radius: 4 x Ø
- Flexing temperature: +5º C to +90º C
- Static temperature: -40º C to +90º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km
Specifications
Low Voltage
Low Voltage
Working Temperature 90℃
Working Temperature 90℃
Cold Resistant -40℃
Cold Resistant -40℃
Flame Retardant
Flame Retardant

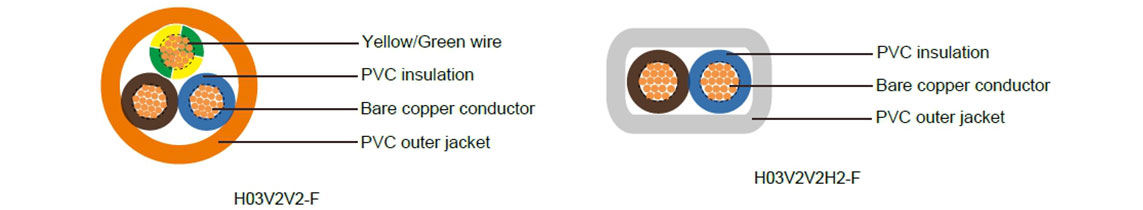

construction
- Bare copper fine wire conductor
- Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
- PVC core insulation T13 to VDE-0281 Part 1
- Color coded to VDE-0293-308
- PVC outer jacket TM3
parameter
H03V2V2-F/H03V2V2H2-F
AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² NOMINAL THICKNESS OF INSULATION MM NOMINAL THICKNESS OF SHEATH MM NOMINAL OVERALL DIAMETER MM NOMINAL COPPER WEIGHT KG/KM NOMINAL WEIGHT KG/KM
H03V2V2-F
20(16/32) 2x0.50 0.5 0.6 5 9.6 38
20(16/32) 3x0.50 0.5 0.6 5.4 14.4 45
20(16/32) 4x0.50 0.5 0.6 5.8 19.2 55
18(24/32) 2x0.75 0.5 0.6 5.5 14.4 46
18(24/32) 3x0.75 0.5 0.6 6 21.6 59
18(24/32) 4x0.75 0.5 0.6 6.5 28.8 72
H03V2V2H2-F
20(16/32) 2x0.50 0.5 0.6 3.2x5.2 9.7 32
18(24/32) 2x0.75 0.5 0.6 3.4x5.6 14.4 35
