German Standard Industrial Cable H05G-U/H07G-U/R
German Standard Industrial Cable H05G-U/H07G-U/R
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
These cables are recommended for the internal wiring of switchboards and distributor boards as well as in operating parts in or on lights. The higher temperature range allows for connections to heaters with an alternating nominal voltage of 1000V. or direct nominal voltage of 750V. These cables are all allowed for laying in tubes in and under plaster.
Standard and Approval
<HAR> HD 22.7 S2, VDE-0282 Part-7, CEI 20-19/7
CEI 20-35(EN60332-1), CE Low Voltage Directive 73/23/EEC and 93/68/EEC
ROHS compliant
Technical Characteristics
WORKING VOLTAGE: 300/500v (H05G-U) ; 450/750v (H07G-U/R)
TEST VOLTAGE: 2000volts (H05G-U) ; 2500 volts (H07G-U/R)
FLEXING BENDING RADIUS: 7 x Ø
STATIC BENDING RADIUS: 7 x Ø
FLEXING TEMPERATURE: -25 ºC to +110 ºC
STATIC TEMPERATURE: -40 ºC to +110 ºC
SHORT CIRCUIT TEMPERATURE: +160 ºC
FLAME RETARDANT: IEC 60332.1
INSULATION RESISTANCE: 10 MΩ x km
Specifications
ROHS
ROHS
Low Voltage
Low Voltage
Cold Resistant -40℃
Cold Resistant -40℃
Flame Retardant
Flame Retardant

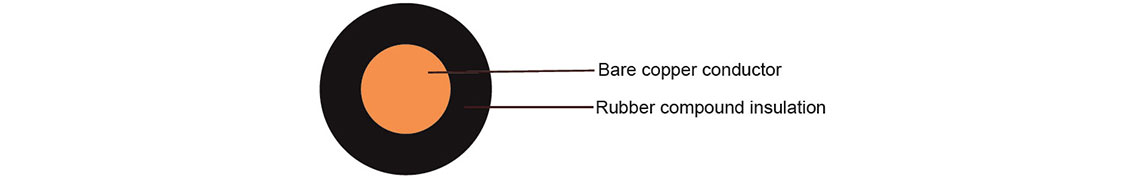

construction
Solid bare copper / strands
Strands to VDE-0295 Class-1/2, IEC 60228 Class-1/2
Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7 insulation
Cores to VDE-0293 colors
parameter
H05G-U/H07G-U/R
AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL OVERALL DIAMETER NOMINAL COPPER WEIGHT NOMINAL WEIGHT
# X MM² MM MM KG/KM KG/KM
H05G-U
20 1 x 0.5 0.6 2.1 4.8 9
18 1 x 0.75 0.6 2.3 7.2 12
17 1 x 1 0.6 2.5 9.6 15
H07G-U
16 1 x 1.5 0.8 3.1 14.4 21
14 1 x 2.5 0.9 3.6 24 32
12 1 x 4 1.0 4.3 38 49
H07G-R
10(7/18) 1 x 6 1.0 5.2 58 70
8(7/16) 1 x 10 1.2 6.5 96 116
6(7/14) 1 x 16 1.2 7.5 154 173
4(7/12) 1 x 25 1.4 9.2 240 268
2(7/10) 1 x 35 1.4 10.3 336 360
1(19/13) 1 x 50 1.6 12.0 480 487
