OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
These special heat-resistant flexible single-conductor hook-up wires are ideal for use in power current installation, switch cabinets, motors and transformers which are subject to direct contact with high temperature (e.g. varnishing machines and drying towers etc.). These are also suitable for inside wiring of electrical equipments such as lighting and heating apparatus.
Standard and Approval
<HAR> HD 21.7 S2, CEI 20-20, CEI20-52, VDE-0281 Part-7
CE Low Voltage Directive 73/23/EEC and 93/68/EEC
ROHS compliant
Technical Characteristics
WORKING VOLTAGE: 300/500v (H05V2-K)/ 450/750v (H07V2-K)
TEST VOLTAGE: 2000 volts
FLEXING BENDING RADIUS: 10-15 x Ø
STATIC BENDING RADIUS: 10-15 x Ø
FLEXING TEMPERATURE: +5 ºC to +90 ºC
STATIC TEMPERATURE: -10 ºC to +105 ºC
FLAME RETARDANT: IEC 60332.1
INSULATION RESISTANCE: 20 MΩ x km
Specifications
ROHS
ROHS
Low Voltage
Low Voltage
Flame Retardant
Flame Retardant

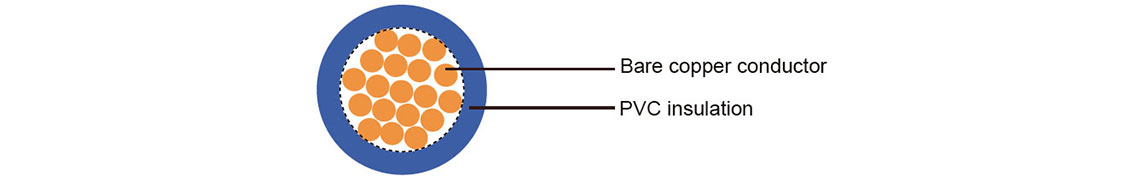

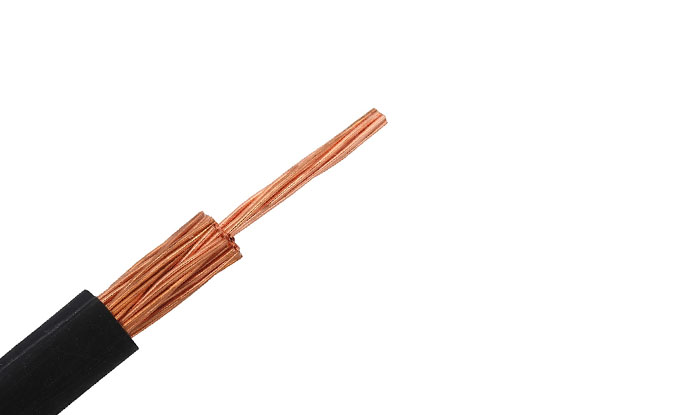

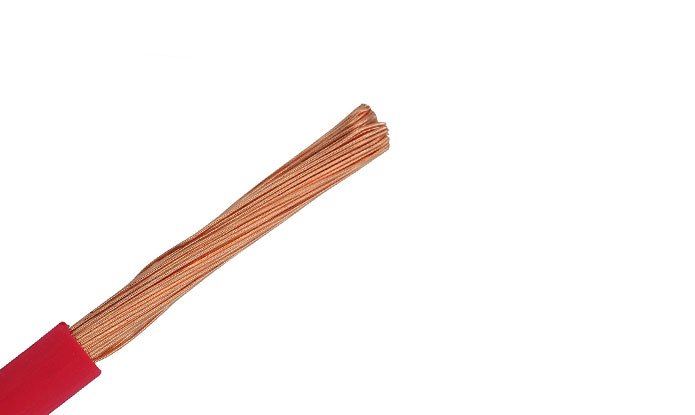

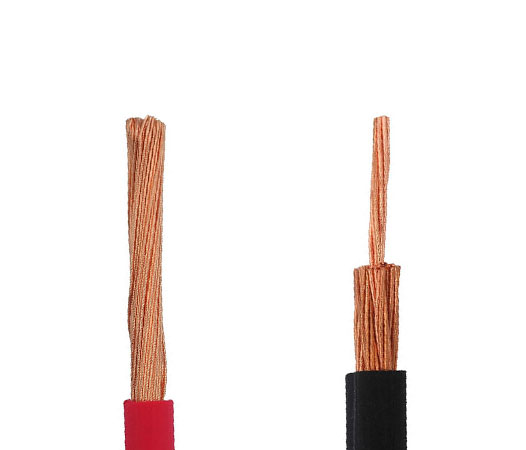

construction
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5, BS 6360 cl. 5 and HD 383
Special heat resistant PVC TI3 core insulation to DIN VDE 0281 part 7
Cores to VDE-0293 colors
H05V2-K (20, 18 & 17 AWG)
H07V2-K (16 AWG and Larger)
parameter
H05V2-K/H07V2-K
AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA NOMINAL THICKNESS OF INSULATION NOMINAL OVERALL DIAMETER NOMINAL COPPER WEIGHT NOMINAL WEIGHT
# X MM² MM MM KG/KM KG/KM
H05V2-K
20(16/32) 1 x 0.5 0.6 2.5 4.8 8.7
18(24/32) 1 x 0.75 0.6 2.7 7.2 11.9
17(32/32) 1 x 1 0.6 2.8 9.6 14.0
H07V2-K
16(30/30) 1 x 1.5 0,7 3.4 14.4 20
14(50/30) 1 x 2.5 0,8 4.1 24 33.3
12(56/28) 1 x 4 0,8 4.8 38 48.3
10(84/28) 1 x 6 0,8 5.3 58 68.5
8(80/26) 1 x 10 1,0 6.8 96 115
6(128/26) 1 x 16 1,0 8.1 154 170
4(200/26) 1 x 25 1,2 10.2 240 270
2(280/26) 1 x 35 1,2 11.7 336 367
1(400/26) 1 x 50 1,4 13.9 480 520
2/0(356/24) 1 x 70 1,4 16 672 729
3/0(485/24) 1 x 95 1,6 18.2 912 962
4/0(614/24) 1 x 120 1,6 20.2 1115 1235
300 MCM (765/24) 1 x 150 1,8 22.5 1440 1523
350 MCM (944/24) 1 x 185 2,0 24.9 1776 1850
500MCM(1225/24) 1 x 240 2,2 28.4 2304 2430
