German Standard Industrial Cable H05V2V2-F/H05V2V2H2-F
German Standard Industrial Cable H05V2V2-F/H05V2V2H2-F
German Standard Industrial Cable H05V2V2-F/H05V2V2H2-F
Get A Quote
Product Inquiry

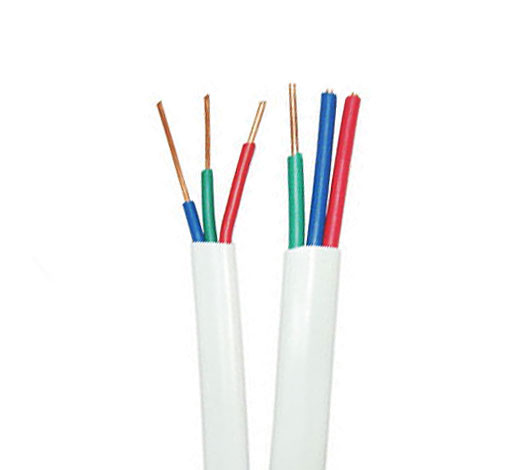

Product Picture
Product name
German Standard Industrial Cable H05V2V2-F/H05V2V2H2-F
German Standard Industrial Cable H05V2V2-F/H05V2V2H2-F
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
These cables are suitable for domestic premises, kitchen, office for light service or light portable apparatuses. With their special insulation and sheath compounds these cables are adapt for apparatus in kitchen and heating and for use in zones with high temperature (like lighting system apparatuses) without contact with warm parts and radiations. Unsuitable for outdoor use, in industrial and agricultural buildings or non-domestic portable tools. The maximum conductor temperature in normal use: 90°C. While high temperature use, skin contact must be avoided
Standard and Approval
<HAR>HD 21.12; HD 308 S2, DIN VDE 0281 part 1, part 12, DIN VDE 0293 part 308, DIN VDE 0295 CEI 20-20/12, CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267), CENELEC HD 21.12 S1 /EN50265-2-1
Technical Characteristics:
- Working voltage: 300/500 volts
- Test voltage: 2000 volts
- Flexing bending radius: 15 x Ø
- Static bending radius: 4 x Ø
- Flexing temperature: +5º C to +90º C
- Static temperature: -40º C to +90º C
- Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km
Specifications
Low Voltage
Low Voltage
Working Temperature 90℃
Working Temperature 90℃
Cold Resistant -40℃
Cold Resistant -40℃
Flame Retardant
Flame Retardant

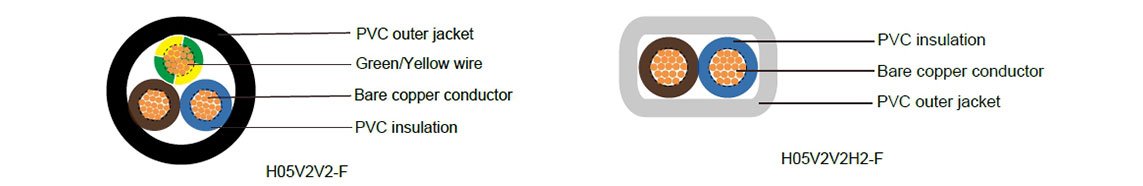

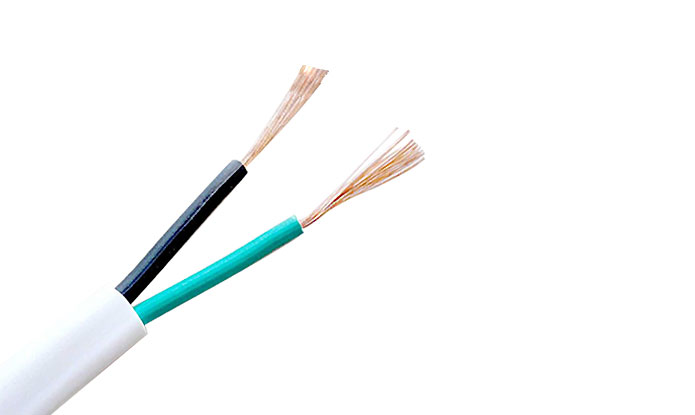

construction
- Bare copper fine wire conductor
- Stranded to DIN VDE 0295 cl. 5, IEC 60228 cl. 5 and HD 383
- PVC core insulation T13 to VDE-0281 Part 1
- Green-yellow grounding (3 conductors and above)
- Color coded to VDE-0293-308
- PVC outer jacket TM3
parameter
H05V2V2-F/H05V2V2H2-F
AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² NOMINAL THICKNESS OF INSULATION MM NOMINAL THICKNESS OF SHEATH MM NOMINAL OVERALL DIAMETER MM NOMINAL COPPER WEIGHT KG/KM NOMINAL WEIGHT KG/KM
H05V2V2-F
18(24/32) 2 x 0.75 0.6 0.8 6.2 14.4 54.2
18(24/32) 3 x 0.75 0.6 0.8 6.6 21.6 65
18(24/32) 4 x 0.75 0.6 0.8 7.1 29 77.7
18(24/32) 5 x 0.75 0.6 0.9 8 36 97.3
17(32/32) 2 x 1.00 0.6 0.8 6.4 19 60.5
17(32/32) 3 x 1.00 0.6 0.8 6.8 29 73.1
17(32/32) 4 x 1.00 0.6 0.9 7.6 38 93
17(32/32) 5 x 1.00 0.6 0.9 8.3 48 111.7
16(30/30) 2 x 1.50 0.7 0.8 7.4 29 82.3
16(30/30) 3 x 1.50 0.7 0.9 8.1 43 104.4
16(30/30) 4 x 1.50 0.7 1.0 9 58 131.7
16(30/30) 5 x 1.50 0.7 1.1 10 72 163.1
14(30/50) 2 x 2.50 0.8 1.0 9.2 48 129.1
14(30/50) 3 x 2.50 0.8 1.1 10 72 163
14(30/50) 4 x 2.50 0.8 1.1 10.9 96 199.6
14(30/50) 5 x 2.50 0.8 1.2 12.4 120 245.4
12(56/28) 3 x 4.00 0.8 1.2 11.3 115 224
12(56/28) 4 x 4.00 0.8 1.2 12.5 154 295
12(56/28) 5 x 4.00 0.8 1.4 13.7 192 361
10(84/28) 3 x 6.00 0.8 1.1 13.1 181 328
10(84/28) 4 x 6.00 0.8 1.3 13.9 230 490
H05V2V2H2-F
18(24/32) 2 x 0.75 0.6 0.8 4.2 x 6.8 14.1 48
17(32/32) 2 x 1.00 0.6 0.8 4.4 x 7.2 19 57
