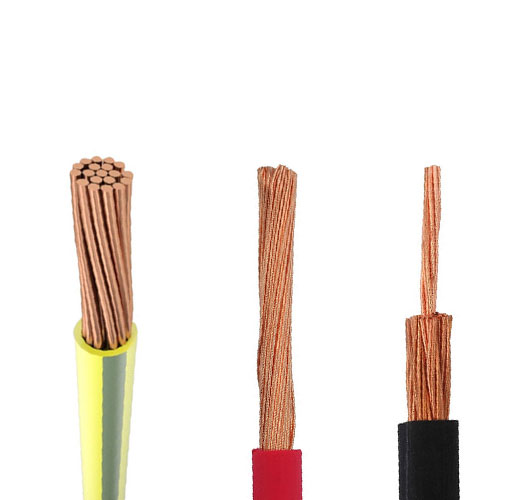

German Standard Industrial Cable H05Z-K/H07Z-K
German Standard Industrial Cable H05Z-K/H07Z-K
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
These cables are designed for the internal wiring of switchboards and distributor boards with an alternating nominal voltage up to 1000 Volts or a direct voltage up to 750 volts. Generally install in pipes or ducts and internal wiring of appliances with maximum operating temperature of 90º C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.
Standard and Approval
<HAR> HD 22.9 S2, VDE-0282 Part-9, BS 7211, IEC 60754-2, EN 50267, VDE 0482-267, CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant
Technical Characteristics:
- Working voltage: 300/500v (H05Z-K), 450/750v (H07Z-K)
- Test voltage: 2500 volts
- Flexing bending radius: 8 x Ø
- Static bending radius: 8 x Ø
- Flexing temperature: -15º C to +90º C
- Static temperature: -40º C to +90º C
- Insulation resistance: 10 MΩ x km
- Smoke density acc. to EN 50268 / IEC 61034
- Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
- Flame test: flame-retardant acc. to EN 50265-2-1, IEC 60332.1
Specifications
ROHS
ROHS
Low Voltage
Low Voltage
LSZH
LSZH
Working Temperature 90℃
Working Temperature 90℃
Cold Resistant -40℃
Cold Resistant -40℃
Flame Retardant
Flame Retardant

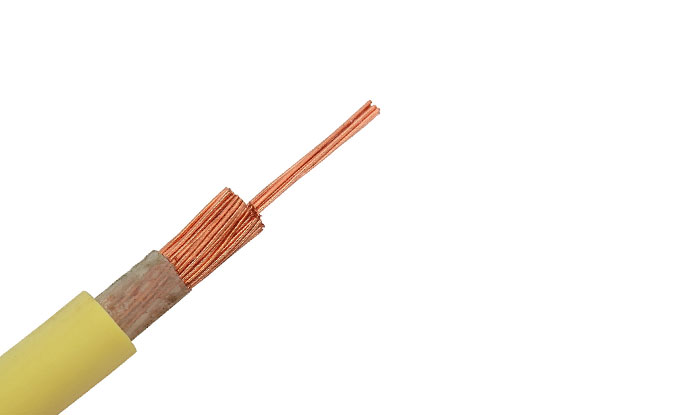

construction

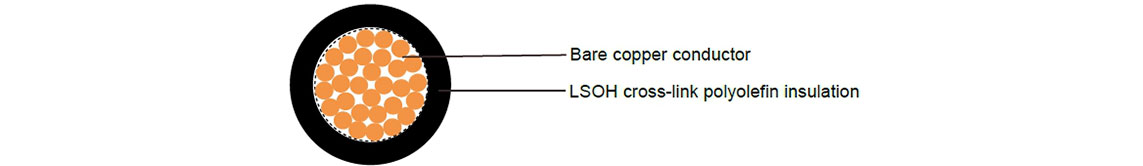

- Fine bare copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5 BS 6360 cl. 5, HD 383
- Cross-link polyolefin EI5 core insulation
- LSOH - low smoke, zero halogen
parameter
H05Z-K/H07Z-K
AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # XMM² NOMINAL THICKNESS OF INSULATION MM NOMINAL OVERALL DIAMETER MM NOMINAL COPPER WEIGHT KG/KM NOMINAL WEIGHT KG/KM
H05Z-K
20(16/32) 1 x 0.5 0.6 2.3 4.8 9
18(24/32) 1 x 0.75 0.6 2.5 7.2 12.4
17(32/32) 1 x 1 0.6 2.6 9.6 15
H07Z-K
16(30/30) 1 x 1.5 0.7 3.5 14.4 24
14(50/30) 1 x 2.5 0.8 4 24 35
12(56/28) 1 x 4 0.8 4.8 38 51
10(84/28) 1 x 6 0.8 6 58 71
8(80/26) 1 x 10 1.0 6.7 96 118
6(128/26) 1 x 16 1.0 8.2 154 180
4(200/26) 1 x 25 1.2 10.2 240 278
2(280/26) 1 x 35 1.2 11.5 336 375
1(400/26) 1 x 50 1.4 13.6 480 560
2/0(356/24) 1 x 70 1.4 16 672 780
3/0(485/24) 1 x 95 1.6 18.4 912 952
4/0(614/24) 1 x 120 1.6 20.3 1152 1200
300 MCM (765/24) 1 x 150 1.8 22.7 1440 1505
350 MCM (944/24) 1 x 185 2.0 25.3 1776 1845
500MCM(1225/24) 1 x 240 2.2 28.3 2304 2400
