German Standard Industrial Cable H05Z-U/H07Z-U/H07Z-R, Fixed Wiring Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

These cables are designed for the internal wiring of switchboards and distributor boards with an alternating nominal voltage up to 1000 Volts or a direct voltage up to 750 volts. Generally install in pipes or ducts and internal wiring of appliances with maximum operating temperature of 90º C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic quipment is installed.

Standard and Approval

<HAR> HD 22.9 S2, VDE-0282 Part-9, BS 7211
IEC 60754-2, EN 50267, VDE 0482-267, CE Low Voltage
Directive 73/23/EEC and 93/68/EEC
ROHS compliant

Technical Characteristics:

WORKING VOLTAGE: 300/500v (H05Z-U), 450/750v (H07Z-U / H07Z-R)
TEST VOLTAGE 2500 volts
FLEXING BENDING RADIUS: 15 x Ø
STATIC BENDING RADIUS: 10 x Ø
FLEXING TEMPERATURE: +5 ºC to +90 ºC
SHORT CIRCUIT TEMPERATURE: +250 ºC
FLAME RETARDANT: IEC 60332.1
INSULATION RESISTANCE: 10 MΩ x km

Specifications

ROHS

Low Voltage

LSZH

Working Temperature 90℃

Flame Retardant

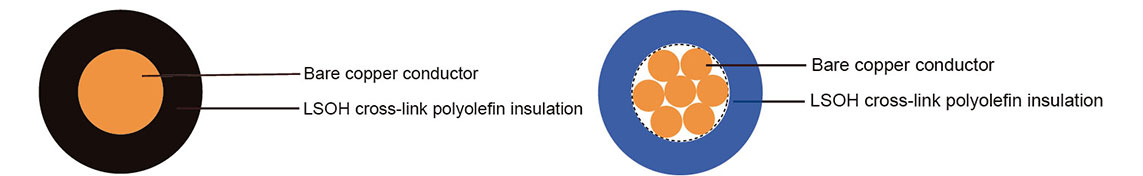

construction

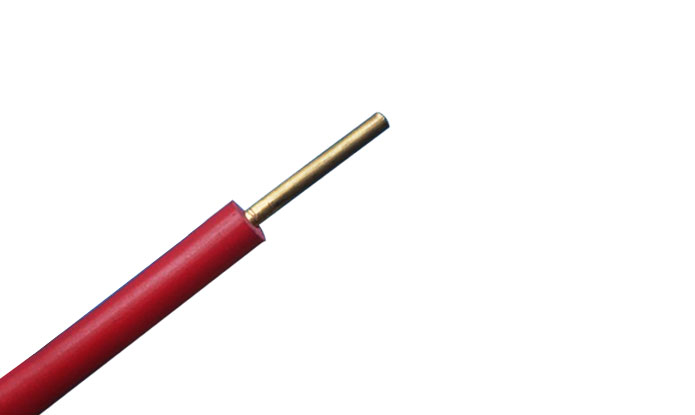

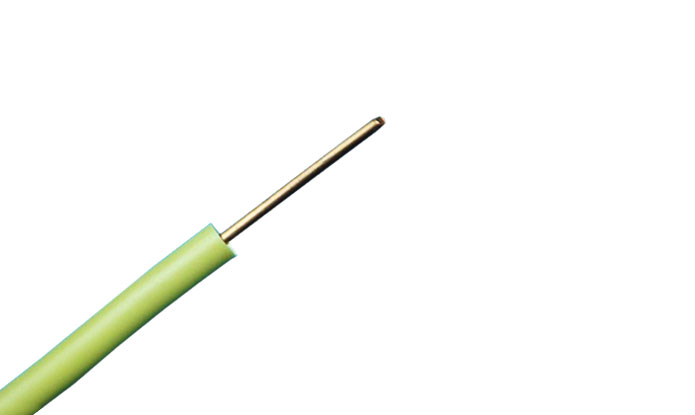

Solid bare copper single wire to IEC 60228 Cl-1(H05Z-U / H07Z-U)
Bare copper strands to IEC 60228 Cl-2 (H07Z-R)
Cross-link polyolefin EI5 core insulation
Cores to VDE-0293 colors
LSOH - low smoke, zero halogen

parameter

H05Z-U/H07Z-U/H07Z-R

AWG	NO. OF CORES X NOMINAL CROSS SECTIONAL AREA	NOMINAL THICKNESS OF INSULATION	NOMINAL OVERALL DIAMETER	NOMINAL COPPER WEIGHT	NOMINAL WEIGHT
AWG	# X MM²	MM	MM	KG/KM	KG/KM
H05Z-U
20	1 x 0.5	0.6	2.0	4.8	8
18	1 x 0.75	0.6	2.2	7.2	12
17	1 x 1	0.6	2.3	9.6	14
H07Z-U
16	1 x 1.5	0,7	2.8	14.4	20
14	1 x 2.5	0,8	3.3	24	30
12	1 x 4	0,8	3.8	38	45
10	1 x 6	0,8	4.3	58	65
8	1 x 10	1,0	5.5	96	105
H07Z-R
16(7/24)	1 x 1.5	0.7	3.0	14.4	21
14(7/22)	1 x 2.5	0.8	3.6	24	33
12(7/20)	1 x 4	0.8	4.1	39	49
10(7/18)	1 x 6	0.8	4.7	58	71
8(7/16)	1 x 10	1	6.0	96	114
6(7/14)	1 x 16	1	6.8	154	172
4(7/12)	1 x 25	1.2	8.4	240	265
2(7/10)	1 x 35	1.2	9.3	336	360
1(19/13)	1 x 50	1.4	10.9	480	487
2/0(19/11)	1 x 70	1,4	12.6	672	683
3/0(19/10)	1 x 95	1,6	14.7	912	946
4/0(37/12)	1 x 120	1,6	16.0	1152	1174
300MCM(37/11)	1 x 150	1,8	17.9	1440	1448
350MCM(37/10)	1 x 185	2,0	20.0	1776	1820
500MCM(61/11)	1 x 240	2,2	22.7	2304	2371
