German Standard Industrial Cable H05Z1Z1H2-F
German Standard Industrial Cable H05Z1Z1H2-F
Get A Quote
Product Inquiry

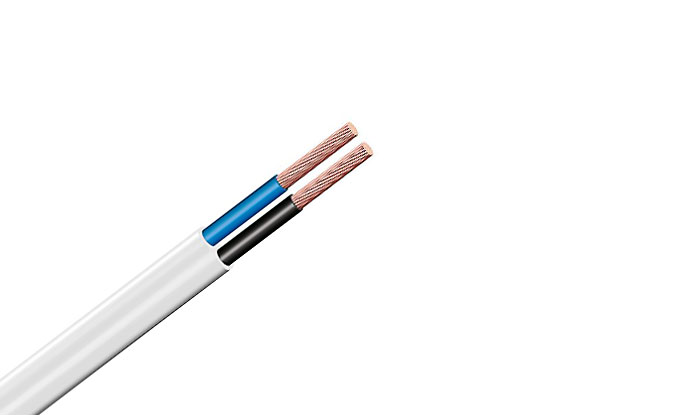

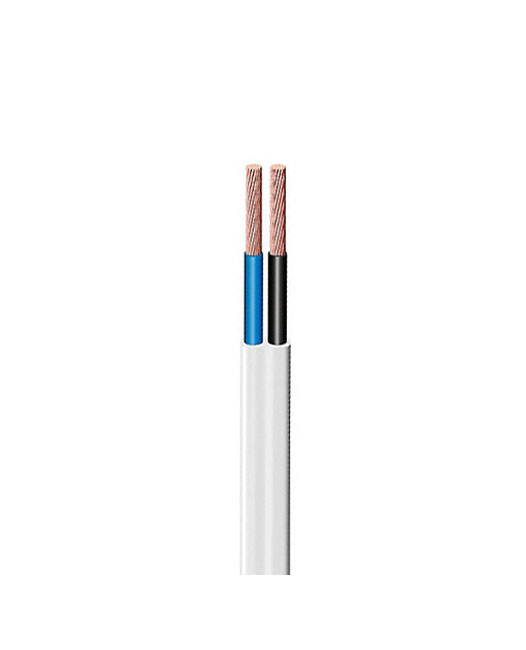

Product Picture
Product name
German Standard Industrial Cable H05Z1Z1H2-F
German Standard Industrial Cable H05Z1Z1H2-F
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
The cable is designed for medium stresses on devices and equipment even in damp areas and where a small amount is required in case of fire smoke and corrosive gases. Outdoor use for a short period of time is permissible. The product is flame resistant.
The cable is designed for ordinary duty for instruments and devices, even in damp areas. For applications where low emission of nontoxic smoke and corrosive gasses is required when the cable is exposed to fire. Use outdoors for temporary periods of short duration. The product is resistant to flame spread.
Properties
Standard (TP) EN 50525-3-11. Norm EN 50525-3-11.
Rated voltage Uo/U: 300/500 V.
Operating core temperature max. +70℃
Maximum traffic. short circuit temperature +150℃
Maximal short-circuit temperature + 150℃
Test voltage: 2 kV
Operating temperature range -25 *) to +70℃
Temperature range from -25℃ to + 70℃
Min. Installation and handling temperature -5℃
Min. temperature for laying and -5℃
Min. storage temperature -30℃
Insulation color HD 308 Color of insulation HD 308 Sheath color white, other colors acc.
Flame spread resistance ČSN EN 60332-1. RoHS aRoHS yREACH aREACH y Smoke ČSN EN 61034. Smoke density ČSN EN 61034. Corrosion of emissions ČSN EN 50267-2. Corrosivity of emitted gases ČSN EN 50267-2. Class of reaction to fire according to CPR ECPR class E
Note
*) At temperatures below +5℃ it is recommended to limit the mechanical stress of the cable.
*) At temperatures below + 5℃ the reduction of mechanical stress on the cable is recommended.
Specifications
ROHS
ROHS
Low Voltage
Low Voltage
Working Temperature 70℃
Working Temperature 70℃
Flame Retardant
Flame Retardant

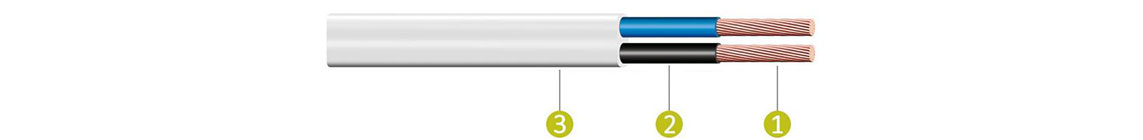

construction
1. Copper stranded bare or tinned cores, class 5 according to EN 60228
2. HFFR insulation
3. HFFR tire
The veins are laid in parallel
1. Stranded plain or tinned copper conductors, class 5 acc. it EN 60228
2. Crosslinked halogen free insulation
3. Crosslinked halogen free sheath The cores are laid in parallel
parameter
H05Z1Z1H2-F
Number and cross-section of veins (mm2) Nominal insulation thickness(mm) Nominal sheath thickness(mm) Maximum external dimension(mm) External dimension inf.(mm) Maximum core resistance at 20 ° C - bare(ohm/km) Weight inf.(kg/km)
2x0.75 0.6 0.8 4.5x7.2 3.9x6.3 26.0 41.5
2x1 0.6 0.8 4.7x7.5 - 19.5 -
