PVC Insulated, PVC Sheathed 2core+E Round Cable, 450/750V, Fixed Wiring Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Standards:

AS/NZS 5000.1, AS/NZS 3008, AS/NZS 1125

Specifications

Low Voltage

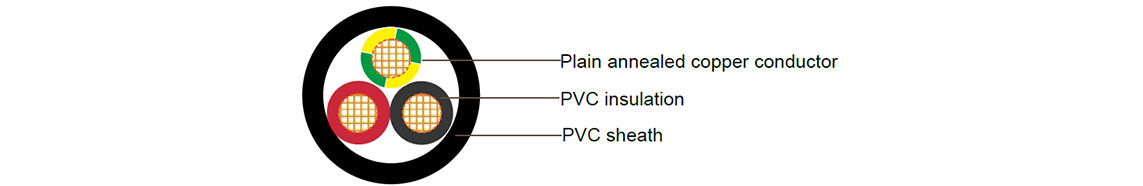

construction

Conductor:

Plain annealed copper

Insulation:

Polyvinylchloride compound PVC V-90

Insulation Colour:

2C + E - Red, Black, Green/yellow

Sheath:

Polyvinylchloride compound PVC 5V-90

Sheath Colour:

Black, other colors are available upon request

parameter

Technical Characteristics

Cable Parameter

CONDUCTOR	CURRENT RATINGS			ELECTRICAL CHARACTERISTICS
NOMINAL AREA MM2	UNENCLOSED IN AIR A	BURIED DIRECT A	BURIED IN DUCTS A	MAXIMUM DC RESISTANCE @20°C OHM/KM	MAXIMUM AC RESISTANCE @75°C OHM/KM	REACTANCE OHM/KM	SINGLE PHASE VOLTAGE DROP @75°C MV/AM
1.5	21	31	24	13.6	16.5	0.111	33.0
2.5	30	44	34	7.41	9.01	0.102	18.0
4	39	57	44	4.61	5.61	0.102	11.2
6	50	72	56	3.08	3.75	0.097	7.50

NOM. CONDUCTOR AREA MM2	CONDUCTOR NO./ OD	NOM. INSULATION THICKNESS MM	NOM. EARTH CONDUCTOR AREA MM2	NOM. SHEATH THICKNESS MM	NOM. OVERALL DIAMETER MM	APPROX. MASS KG/KM
1.5	7/0.50	0.6	1.5	0.9	8.5	110
2.5	7/0.67	0.7	2.5	1	10.1	170
4	7/0.85	0.8	2.5	1.1	11.2	220
6	7/1.04	1.0	2.5	1.1	12.3	250
