V75 PVC Light Duty Flexible Cord, 250/250V, Fixed Wiring Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Leave your Feedback

Application

These cables are suitable for installing in dry applications only. They are use in radios, shavers, desk lamps and small portable equipment or use in office machines, hair dryers etc. and for appliances requiring an earth connection. Also suitable for use with double insulated appliances where the cord is not subject to mechanical stress.

Standards:

AS/NZS 3191
AS/NZS 1125

Specifications

Low Voltage

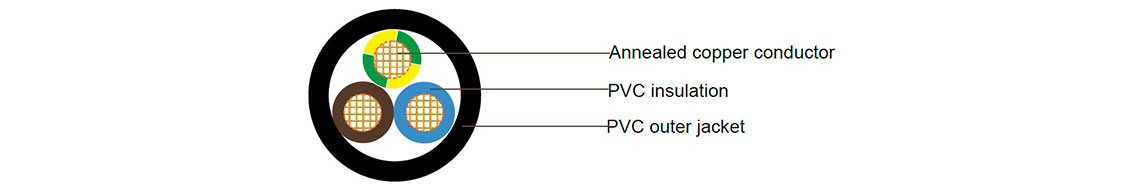

construction

Conductor:

Annealed copper conductor to AS/NZS 1125
Maximum operating temperature: 75°C

Insulation:

V-75 PVC

Colours:

2C Brown, Light Blue
3C Brown, Light Blue, Green/Yellow

Sheath:

4V-75 PVC

Sheath Colour:

Grey, White, Black, Orange

parameter

Technical Characteristics

Cable Parameter

CONDUCTOR SIZE	CURRENT CARRYING CAPACITY	MAX. DC RESISTANCE	MAX. AC RESISTANCE	SINGLE PHASE VOLTAGE DROP
MM²	A	OHM/KM @ 20 °C	OHM/KM @ 90 °C	MV/A.M
0.5	3	39.0	47.4	94.7
0.75	7.5	26.0	31.6	63.2
1.0	10	19.5	23.7	47.5
1.5	16	13.3	16.2	32.3
2.5	20	7.98	9.70	19.4
4.0	25	4.95	6.02	12.0

CONDUCTOR SIZE	NO.OF CORES	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL O.D.	APPROX. CABLE WEIGHT
MM²		MM	MM	MM	KG/100M
Round
0.5	2	0.5	0.6	5.2	3.7
0.5	3	0.5	0.6	5.5	4.2
0.75	2	0.5	0.6	5.6	4.5
0.75	3	0.5	0.6	5.9	5.4
Parallel Webbed, Flat, Unsheathed
0.5	2	0.8	-	5.2×2.6	2.2
0.75	2	0.8	-	5.6×2.8	2.7
