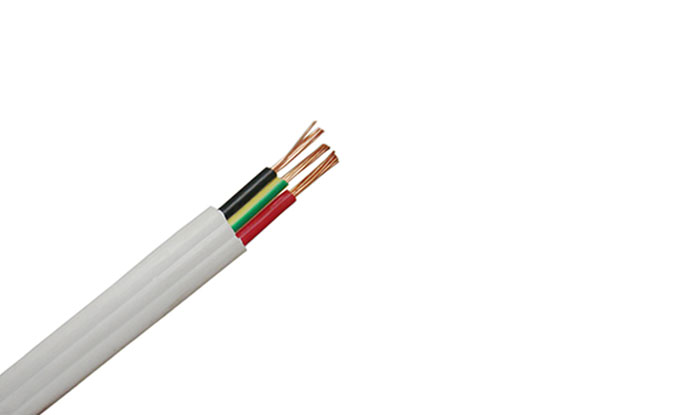

V75 PVC Ordinary Duty Flexible Cord, 250/400V, Fixed Wiring Cable

OVERVIEW

SPECIFICATIONS

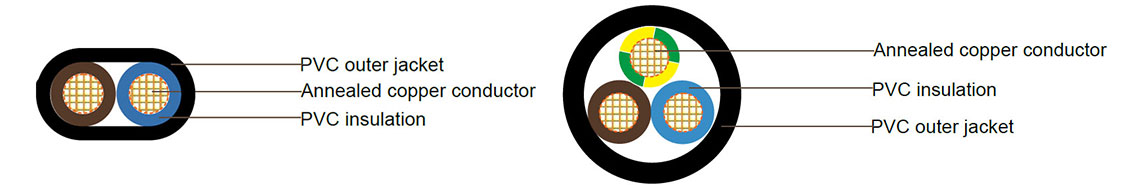

CONSTRUCTION

PARAMETER

Application

These cables are suitable for installation in dry applications only, in conduit or enclosures, such as switchboards, control panels, appliances and electrical equipment. such as radios, desk lamps and office machines, etc. Also they are used for extension leads in sizes 1 mm² and above.
Multicore cords containing an E core are suitable for a number of applications in dry and damp conditions, such as domestic appliances (washing machines, dishwashers). Leads for industrial and office equipment requiring a three-phase supply and an earth connection.

Standards:

AS/NZS 3191
AS/NZS 1125

Specifications

Low Voltage

construction

Conductor:

Annealed copper conductor to AS/NZS 1125
Maximum continuous operating temperature: 75°C

Insulation:

V-75 PVC

Colours:

1C - Red, White, Light Blue, Black
2C - Brown, Light Blue
3C - Brown, Light Blue, Green/Yellow
4C - Brown, Light Blue, White, Green/Yellow
5C - Brown, Light Blue, Orange, White, Green/Yellow

Sheath:

4V-75 PVC

Sheath Colour:

Grey, White, Black, Orange

parameter

Technical Characteristics

Single Core Round

Multi Cores Round

Flat

CONDUCTOR SIZE	CURRENT CARRYING CAPACITY	MAX. DC RESISTANCE	MAX. AC RESISTANCE	SINGLE PHASE VOLTAGE DROP
MM²	A	OHM/KM @ 20 °C	OHM/KM @ 90 °C	MV/A.M
0.5	3	39.0	47.4	94.7
0.75	7.5	26.0	31.6	63.2
1.0	10	19.5	23.7	47.5
1.5	16	13.3	16.2	32.3
2.5	20	7.98	9.70	19.4
4.0	25	4.95	6.02	12.0

CONDUCTOR SIZE	NO.OF CORES	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL O.D.	APPROX. CABLE WEIGHT
MM²	NO.OF CORES	MM	MM	MM	KG/100M
0.5	1	0.6	-	2.2	0.9
0.75	1	0.6	-	2.4	1.2
1.0	1	0.6	-	2.5	1.5
1.5	1	0.7	-	3.0	2.1
2.5	1	0.8	-	3.7	3.4
4	1	0.8	-	4.2	4.8

CONDUCTOR SIZE	NO.OF CORES	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL O.D.	APPROX. CABLE WEIGHT
MM²	NO.OF CORES	MM	MM	MM	KG/100M
0.75	2	0.6	0.8	6.4	5.7
1.0	2	0.6	0.8	6.7	6.5
1.5	2	0.7	0.8	7.7	8.9
2.5	2	0.8	1.0	9.4	14
4	2	0.8	1.0	10.5	18
0.75	3	0.6	0.8	6.8	6.8
1.0	3	0.6	0.8	7.1	7.9
1.5	3	0.7	0.9	8.4	11
2.5	3	0.8	1.1	10.2	17
4	3	0.8	1.1	11.4	23
0.75	4	0.6	0.8	7.4	8.2
1.0	4	0.6	0.9	8.0	9.9
1.5	4	0.7	1.0	9.4	14
2.5	4	0.8	1.1	11.2	21
4	4	0.8	1.1	12.5	29
0.75	5	0.6	0.9	8.3	10
1.0	5	0.6	0.9	8.7	12
1.5	5	0.7	1.1	10.5	17
2.5	5	0.8	1.2	12.4	26
4	5	0.8	1.3	14.1	36

CONDUCTOR SIZE	NO.OF CORES	NOMINAL INSULATION THICKNESS	NOMINAL SHEATH THICKNESS	NOMINAL O.D.	APPROX. CABLE WEIGHT
MM²	NO.OF CORES	MM	MM	MM	KG/100M
0.5	2	0.6	0.8	6.0×3.9	3.6
0.75	2	0.6	0.8	6.4×4.1	4.3
