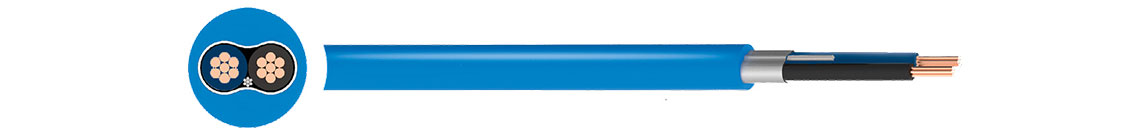

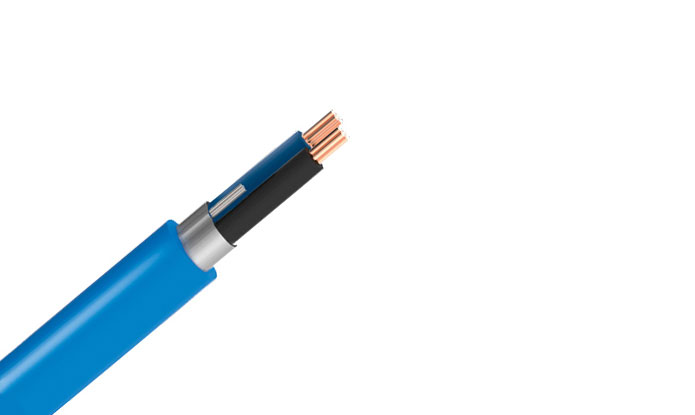

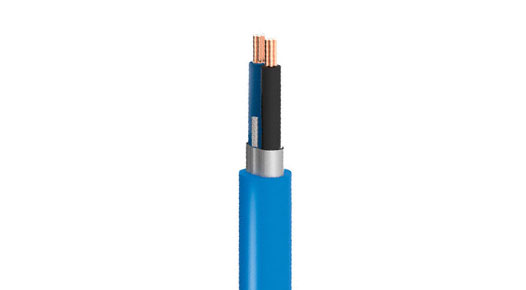

BS 5308 Part 1 Type 1 PE / CAM / PVC Cable
BS 5308 Part 1 Type 1 PE / CAM / PVC Cable
Get A Quote
Product Inquiry
Product Picture
Product name
BS 5308 Part 1 Type 1 PE / CAM / PVC Cable
BS 5308 Part 1 Type 1 PE / CAM / PVC Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue, data or voice type and from a variety of transducers such as pressure, proximity or microphone. Part 1 Type 1 cables are generally designed for indoor use and in environments where mechanical protection is not required.
Standards:
BS/PAS 5308, BS EN 60228
Characteristics
VVoltage Rating Uo/U 300/500V
Temperature Rating Fixed: -40ºC to +80ºC Flexed: 0ºC to +50ºC
Minimum Bending Radius
Fixed: 6 x overall diameter
Specifications
Low Voltage
Low Voltage
Cold Resistant -40℃
Cold Resistant -40℃
construction
Conductor:
0.5mm² - 0.75mm²: Class 5 flexible copper conductor 1mm² and above: Class 2 stranded copper conductor
Insulation:
PE (Polyethylene)
Screen:
Al/PET (Aluminium/Polyester Tape)
Drain Wire:
Tinned copper
Sheath:
PVC (Polyvinyl Chloride)
Sheath Colour:
Blue Black
parameter
Type 1
Conductor
ELECTRICAL CHARACTERISTICS
NO. OF PAIRS/TRIPLE NOMINAL CROSS SECTIONAL AREA NOMINAL OVERALL DIAMETER
mm2 mm
1P 0.5 7
1P 0.75 7.4
1P 1 7.4
1P 1.5 8.3
1P 2.5 9.1
1T 0.5 7.3
1T 0.75 7.7
1T 1 7.7
1T 1.5 8.9
1T 2.5 9.1
2P(Q) 0.5 7.9
2P(Q) 0.75 8.4
2P(Q) 1 8.4
2P(Q) 1.5 9.7
2P(Q) 2.5 10.7
5P 0.5 13.1
5P 0.75 13.8
5P 1 14.2
5P 1.5 16.4
5P 2.5 18.2
10P 0.5 17.2
10P 0.75 18.9
10P 1 18.4
10P 1.5 21.6
10P 2.5 25.1
15P 0.5 19.8
15P 0.75 21.9
15P 1 21.3
15P 1.5 25.4
15P 2.5 29,2
20P 0.5 22.3
20P 0.75 24.6
20P 1 24.4
20P 1.5 28.5
20P 2.5 39.8
P = Pairs, Q = Quad, T = Triple
NOMINAL CROSS SECTIONAL AREA CONDUCTOR CLASS MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C
mm2   ohms/km
0.5 5 39
0.75 5 26
1 1 18.1
1.5 2 12.1
2.5 2 7.41
NOMINAL CROSS SECTIONAL AREA MUTUAL CAPACITANCE MINIMUM INSULATION RESISTANCE AT 20°C MAXIMUM L/R RATIO
mm2 pF/m mohms/km μH/ohms
Cables with Collective Screen Only 1 Pair, 2 Pairs, 1 Triple Collectively Screened Cables with Individually Screened Pairs
0.5 75 115 115 >5 25
0.75 75 115 115 >5 25
1 75 115 115 >5 25
1.5 85 120 120 >5 40
2.5 85 120 120 >5 65
