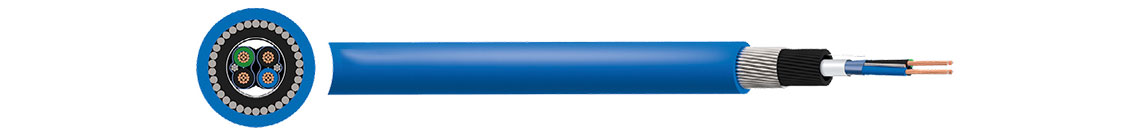

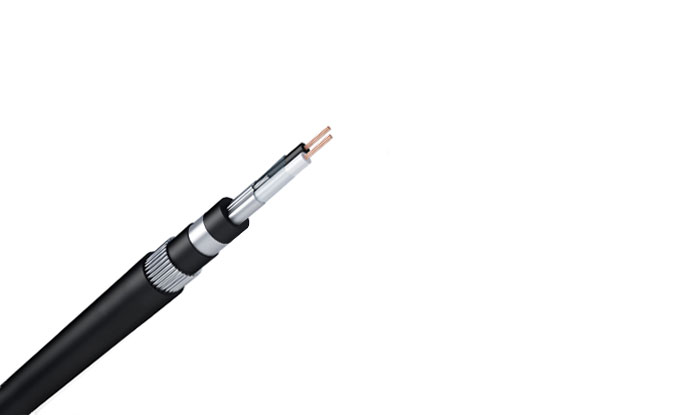

BS 5308 Part 1 Type 1 PE / CAM / PVC Cable
BS 5308 Part 1 Type 1 PE / CAM / PVC Cable

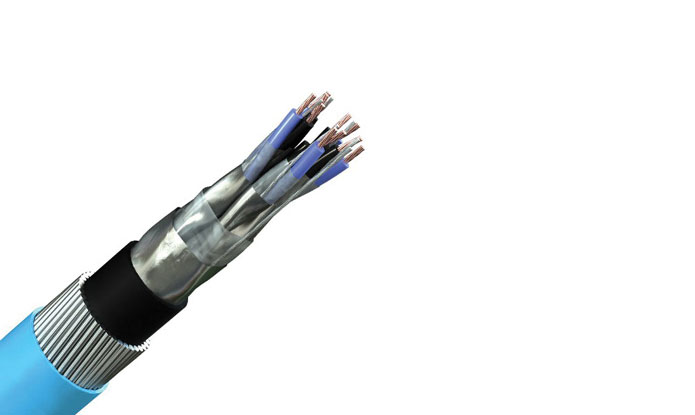

BS 5308 Part 1 Type 2 PE / CAM / PE / SWA / PVC Instrumentation Cable
Get A Quote
Product Inquiry

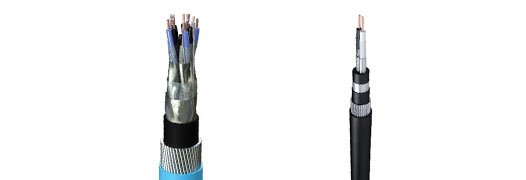

Product Picture
Product name
BS 5308 Part 1 Type 1 PE / CAM / PVC Cable
BS 5308 Part 1 Type 2 PE / CAM / PE / SWA / PVC Instrumentation Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue, data or voice type and from a variety of transducers such as pressure, proximity or microphone. Part 1 Type 2 cables are designed where a greater degree of mechanical protection is required namely outdoor / exposed or direct burial at suitable depth.
CHARACTERISTICS
Voltage Rating (Uo/U) 300/500V
Temperature Rating Fixed: -40ºC to +80ºC Flexed: 0ºC to +50ºC
Minimum Bending Radius
Fixed: 12 x overall diameter
Specifications
Low Voltage
Low Voltage
Cold Resistant -40℃
Cold Resistant -40℃
construction
Conductor:
0.5mm² - 0.75mm²: Class 5 flexible copper conductor
1mm² and above: Class 2 stranded copper conductor
Insulation:
PE (Polyethylene)
Screen:
Al/PET (Aluminium/Polyester Tape)
Drain Wire:
Tinned copper
Bedding:
PE (Polyethylene)
Armour:
SWA (Galvanised Steel Wire Armour)
Sheath:
PVC (Polyvinyl Chloride)
Sheath Colour:
Blue Black
parameter
Type 1
Conductor
ELECTRICAL CHARACTERISTICS
NO. OF PAIRS/TRIPLE NOMINAL CROSS SECTIONAL AREA NOMINAL OVERALL DIAMETER
  mm2 mm
1P 0.5 11.4
1P 0.75 11.8
1P 1 11.8
1P 1.5 12.9
1P 2.5 13.7
1T 0.5 11.7
1T 0.75 12.1
1T 1 12.3
1T 1.5 13.5
1T 2.5 17.3
2P(Q) 0.5 12.3
2P (Q) 0.75 13
2P (Q) 1 13
2P (Q) 1.5 14.3
2P (Q) 2.5 15.3
5P 0.5 17.9
5P 0.75 19.3
5P 1 19.7
5P 1.5 22.1
5P 2.5 24.1
10P 0.5 22.9
10P 0.75 25.5
10P 1 24.3
10P 1.5 28.4
10P 2.5 32.1
15P 0.5 26.4
15P 0.75 28.7
15P 1 28.1
15P 1.5 32.2
15P 2.5 36.4
20P 0.5 29.1
20P 0.75 31.6
20P 1 31.2
20P 1.5 35.7
20P 2.5 41
P = Pairs, Q = Quad, T = Triple
NOMINAL CROSS SECTIONAL AREA CONDUCTOR CLASS MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C
mm2   ohms/km
0.5 5 39
0.75 5 26
1 1 18.1
1.5 2 12.1
2.5 2 7.41
NOMINAL CROSS SECTIONAL AREA
mm2
MAXIMUM MUTUAL CAPACITANCE
pF/m
MINIMUM INSULATION RESISTANCE AT 20°C
Gohms/km
MAXIMUM L/R RATIO
μH/ohms
Cables with Collective Screen Only 1 Pair, 2 Pairs, 1 Triple Collectively Screened Cables with Individually Screene pairs
0.5 75 115 115 >5 25
0.75 75 115 115 >5 25
1 75 115 115 >5 25
1.5 85 120 120 >5 40
2.5 85 120 120 >5 65
