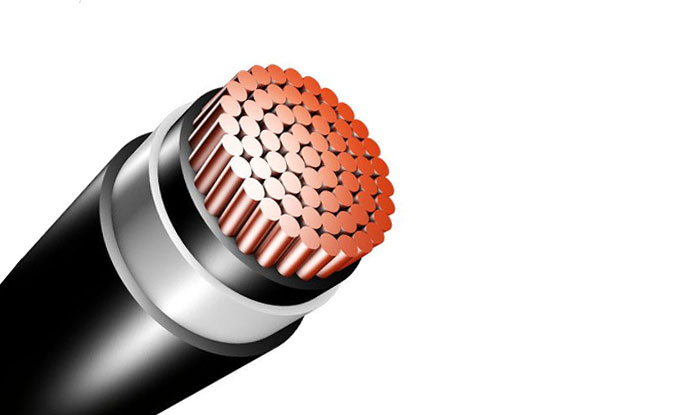

600/1000V Un-Armored Lead Sheath Cable
600/1000V Un-Armored Lead Sheath Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
Low Voltage Lead Sheathed Cables are used mainly in the utilities and petrochemical industries owing to the lead sheathing’s resistance to sulfides, water, oil and any corrosive chemicals found in the ground water.
Standards:
IEC60502-1
Specifications
Low Voltage
Low Voltage
Water Resistance
Water Resistance
Oil Resistance
Oil Resistance

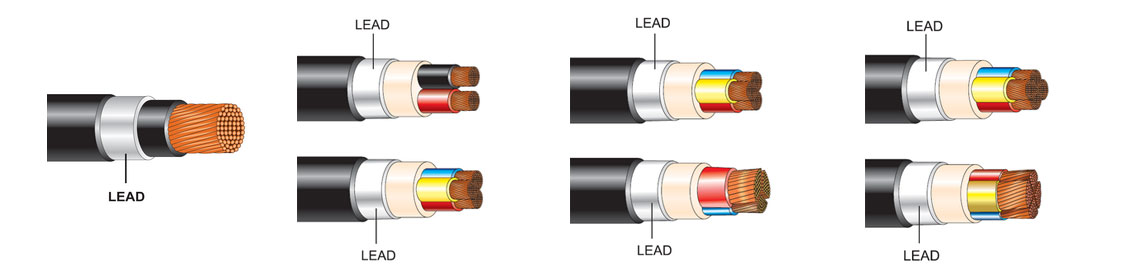

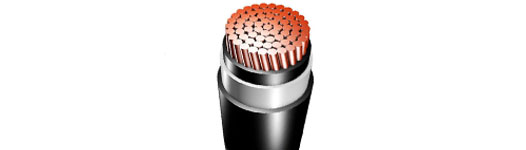

construction
Conductor:
Plain annealed stranded copper or aluminum conductor.
Insulation:
materials such as cross-linked polyethylene (XLPE) provide high temperature resistance and excellent dielectric strength-providing enhanced electrical properties.
Bedding:
PVC (Polyvinyl-Chloride)
Lead sheath:
Lead
Separation:
PVC or another material.
Outer sheath:
PVC, PE or LSZH material.
parameter
Single Core
2 & 3 Cores
3 Cores
4 Cores

Un-Armored Single Core Lead Sheath Cable
Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.) DC Resistance at 20°C
mm² mm mm mm mm mm Kg/Km Ohm/Km
1x10 rm 4 0.7 1.2 1.4 16 715 1.83
1x16 rm 5 0.7 1.2 1.4 17 825 1.15
1x25 rm 6.3 0.9 1.2 1.4 19 1025 0.727
1x35 rm 7.4 0.9 1.2 1.4 20 1150 0.524
1x50 rm 8.8 1 1.2 1.4 21 1350 0.387
1x70 rm 10.6 1.1 1.2 1.5 23 1675 0.268
1x95 rm 12.4 1.1 1.2 1.5 25 2025 0.193
1x120 rm 14 1.2 1.2 1.6 27 2425 0.153
1x150 rm 15.5 1.4 1.3 1.7 29 2800 0.124
1x185 rm 17.4 1.6 1.4 1.7 31 3400 0.0991
1x240 rm 20.3 1.7 1.4 1.8 35 4250 0.0754
1x300 rm 22.7 1.8 1.5 1.9 37 5000 0.0601
1x400 rm 25.4 2 1.6 2 42 6250 0.047
1x500 rm 28.8 2.2 1.7 2.2 46 7725 0.0366
1x630 rm 30.4 2.4 1.8 2.3 48 9275 0.0283
Un-Armored 2 & 3 Core Lead Sheath Cable
Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.) DC Resistance at 20°C
mm² mm mm mm mm mm Kg/Km Ohm/Km
2x2.5 rm 2 0.7 1.2 1.8 18 825 7.41
2x4 rm 2.6 0.7 1.2 1.8 19 925 4.61
2x6 rm 3.1 0.7 1.2 1.8 20 1025 3.08
2x10 rm 4 0.7 1.2 1.8 22 1225 1.83
2x16 rm 5 0.7 1.2 1.8 24 1500 1.15
2x25 rm 6.3 0.9 1.2 1.8 27 1925 0.727
2x35 rm 7.4 0.9 1.2 1.8 29 2300 0.524
2x50 rm 8.8 1 1.3 1.8 33 2875 0.387
3x1.5 rm 1.6 0.7 1.2 1.8 17 790 12.1
3x2.5 rm 2 0.7 1.2 1.8 18 875 7.41
3x4 rm 2.6 0.7 1.2 1.8 19 1000 4.61
3x6 rm 3.1 0.7 1.2 1.8 21 1125 3.08
3x10 rm 4 0.7 1.2 1.8 23 1375 1.83
3x16 rm 5 0.7 1.2 1.8 25 1700 1.15
3x25 rm 6.3 0.9 1.2 1.8 28 2225 0.727
3x35 rm 7.4 0.9 1.3 1.8 31 2650 0.524
Un-Armored 3 Core Lead Sheath Cable
Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.) DC Resistance at 20°C
mm² mm mm mm mm mm Kg/Km Ohm/Km
ROUND STRANDED CONDUCTORS
3x50 rm 8.8 1 1.4 1.9 35 3350 0.387
3x70 rm 10.6 1.1 1.5 2 40 4425 0.268
3x95 rm 12.4 1.1 1.6 2.1 44 5625 0.193
3x120 rm 14 1.2 1.7 2.3 49 6850 0.153
3x150 rm 15.5 1.4 1.8 2.4 54 8250 0.124
3x185 rm 17.4 1.6 1.9 2.6 59 10025 0.0991
3x240 rm 20.3 1.7 2.1 2.8 67 12900 0.0754
3x300 rm 22.7 1.8 2.2 2.9 73 15550 0.0601
SECTORAL STRANDED CONDUCTORS
3x50 sm - 1 1.3 1.9 32 3000 0.387
3x70 sm - 1.1 1.4 2 36 4000 0.268
3x95 sm - 1.1 1.5 2.1 40 5075 0.193
3x120 sm - 1.2 1.6 2.3 44 6175 0.153
3x150 sm - 1.4 1.7 2.4 48 7525 0.124
3x185 sm - 1.6 1.8 2.6 53 9125 0.0991
3x240 sm - 1.7 2 2.8 59 11650 0.0754
3x300 sm - 1.8 2.1 2.9 64 14025 0.0601
Un-Armored 4 Core Lead Sheath Cable
Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.) DC Resistance at 20°C
mm² mm mm mm mm mm Kg/Km Ohm/Km
4x1.5 rm 1.6 0.7 1.2 1.8 18 850 12.1
4x2.5 rm 2 0.7 1.2 1.8 19 950 7.41
4x4 rm 2.6 0.7 1.2 1.8 20 1100 4.61
4x6 rm 3.1 0.7 1.2 1.8 22 1250 3.08
4x10 rm 4 0.7 1.2 1.8 24 1550 1.83
4x16 rm 5 0.7 1.2 1.8 26 1950 1.15
4x25 rm 6.3 0.9 1.3 1.8 31 2700 0.727
4x35 sm - 0.9 1.2 1.8 31 2800 0.524
4x50 sm - 1 1.4 2 35 3700 0.387
4x70 sm - 1.1 1.5 2.1 40 4950 0.268
4x95 sm - 1.1 1.6 2.3 44 6350 0.193
4x120 sm - 1.2 1.7 2.4 48 7750 0.153
4x150 sm - 1.4 1.8 2.6 53 9425 0.124
4x185 sm - 1.6 2 2.7 58 11575 0.0991
4x240 sm - 1.7 2.2 3 65 14800 0.751
4x300 sm - 1.8 2.3 3.2 71 17900 0.0601
