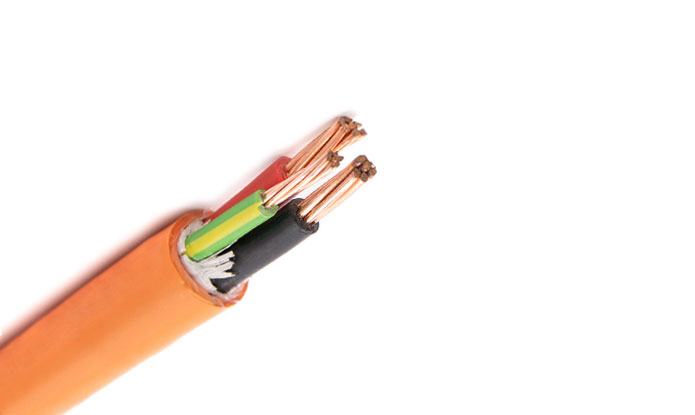

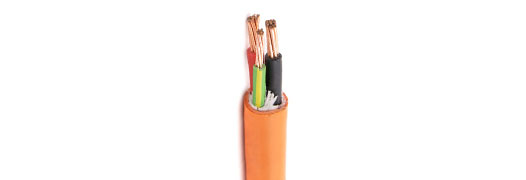

XLPE Insulated, PVC Sheathed 2 cores+E Unarmored Cable, 0.6/1kV, Low voltage cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Standards:

AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125
IEC60502-1

Specifications

Low Voltage

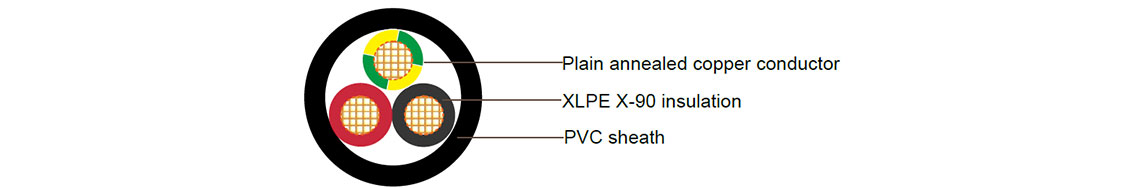

construction

Conductor:

Plain annealed copper.

Insulation:

XLPE X-90.

Insulation color:

2C + E - Red, Black, Green/yellow

Sheath:

Polyvinylchloride compound PVC 5V-90

Sheath Color:

Black, other colors are available upon request

parameter

Table 1

Table 2

CONDUCTOR	CURRENT RATINGS			ELECTRICAL CHARACTERISTICS
NOMINAL AREA MM2	UNENCLOSED IN AIR A	BURIED DIRECT A	BURIED IN DUCTS A	MAXIMUM DC RESISTANCE @20°C OHM/KM	MAXIMUM AC RESISTANCE @90°C OHM/KM	REACTANCE OHM/KM	SINGLE PHASE VOLTAGE DROP @90°C MV/AM
10	80	107	82	1.83	2.33	0.084	1.68
16	107	139	107	1.51	1.47	0.081	2.95
25	143	182	139	0.727	0.927	0.081	1.86
35	160	130	160	0.524	0.669	0.0786	1.35
50	195	160	190	0.387	0.494	0.0751	1.00
70	250	200	235	0.268	0.343	0.0741	0.703
95	310	240	285	0.193	0.248	0.0725	0.520
120	360	285	325	0.153	0.197	0.0713	0.423

NOM. CONDUCTOR AREA MM2	CONDUCTOR NO./ OD	NOM. INSULATION THICKNESS MM	NOM. EARTH CONDUCTOR AREA MM2	NOM. EARTH CONDUCTOR INSULATION THICKNESS MM	NOM. SHEATH THICKNESS MM	NOM. OVERALL DIAMETER MM	APPROX. MASS KG/KM
10	7/1.35	0.7	4	0.7	1.4	14.9	380
16	7/1.70	0.7	6	0.7	1.4	16.6	520
25	7/2.14	0.9	6	0.7	1.4	20.2	750
35	7/2.65	0.9	10	0.7	1.4	23.0	985
50	19/1.89	1.0	16	0.7	1.4	24.1	1310
70	19/2.24	1.1	25	0.9	1.4	29.8	1860
95	19/2.65	1.1	25	0.9	1.5	31.6	2415
120	19/2.94	1.2	35	0.9	1.6	35.5	3055
