Bus Drop Cable, 60°C - 600 Volt
Bus Drop Cable, 60°C - 600 Volt
Bus Drop Cable, 60°C - 600 Volt
Get A Quote
Product Inquiry
Product Picture
Product name
Bus Drop Cable, 60°C - 600 Volt
Bus Drop Cable, 60°C - 600 Volt
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
•Connection of stationary equipment
•PVC Jacket offers excellent resistance to grease, lubricants, oils and other fluids which are used with various types of machinery
Standards:
•NEC 364-8, as branch wiring form busways
•UL Listed
Specifications
Low Voltage
Low Voltage
Oil Resistance
Oil Resistance

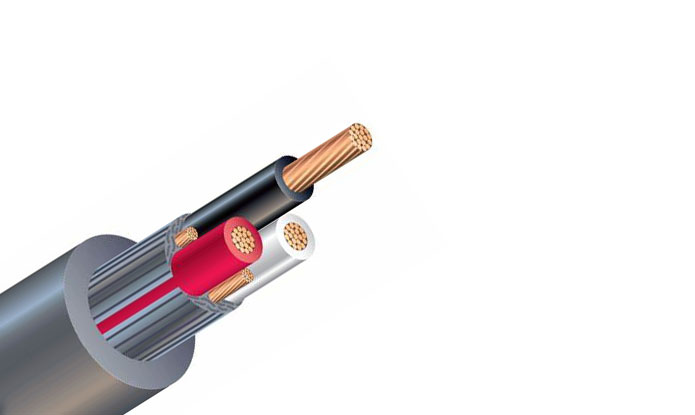

construction
Conductor:
Bare stranded copper
Insulation:
Color coded Polyvinyl Chloride
Filler:
Suitable fillers are used to make the cable round
Ground Wires:
Stranded, placed in spaces between individual conductors
Jacket:
Gray PVC
PARAMETER
COLOR CODE
Bus Drop Cable
COLOR CODE CHART
Cond. # Color
1 Red
2 Black
3 White
4 Blue
AWG Conductors Ground No. X AWG Insulation Thickness Jacket Thickness Nom. O.D. Lbs./M’
14 3 3 x 18 .030” .045” .400” 111
14 4 3 x 18 .030” .045” .425” 140
12 3 3 x 16 .030” .045” .441” 150
12 4 3 x 16 .030” .045” .462” 159
10 3 3 x 14 .030” .045” .501” 224
10 4 3 x 14 .030” .045” .500” 238
8 3 3 x 14 .045” .060” .665” 334
8 4 3 x 14 .045” .060” .698” 379
6 3 3 x 14 .060” .060” .815” 483
6 4 3 x 14 .060” .060” .855” 571
4 3 3 x 12 .060” .080” .965” 721
4 4 3 x 12 .060” .060” .990” 841
2 3 3 x 12 .060” .080” 1.10” 1034
2 4 3 x 12 .060” .060” 1.28” 1130
