DG Cable, UL DG cable, Electrical Power and Control Tray Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application:

Standard for Electrical Power and Control Tray Cable.

Features:

Rating voltage: 600V
The maximum operating temperature: 90℃
Standard Certification: UL3003
Flame test: FT4
RoHS & Reach Compliant

Reference Standard

UL 3003

Specifications

ROHS

Low Voltage

Working Temperature 90℃

Flame Retardant

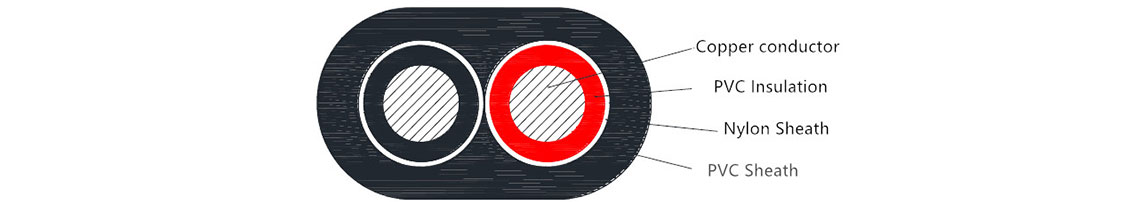

construction

Conductor:

Bare copper stranded 12AWG(19/0.47mm)

Insulation:

PVC, Min.average thickness: 0.38mm, OD=3.20±0.10mm, Color: 1.black 2.red

Insulation 2:

Nylon, Min.average thickness: 0.15mm, OD=3.55±0.10mm, Color: 1~2.Nature

Jacket:

PVC, Min.average thickness: 1.14mm, W×H=(9.70±0.30mm)×(6.10±0.20mm), color: black

parameter

PROPERTY

Voltage withstand test (kV/1min)	AC 2.0
Max.DC conductor resistance(20℃)(Ω/km)	5.43
UV resistance	720h
