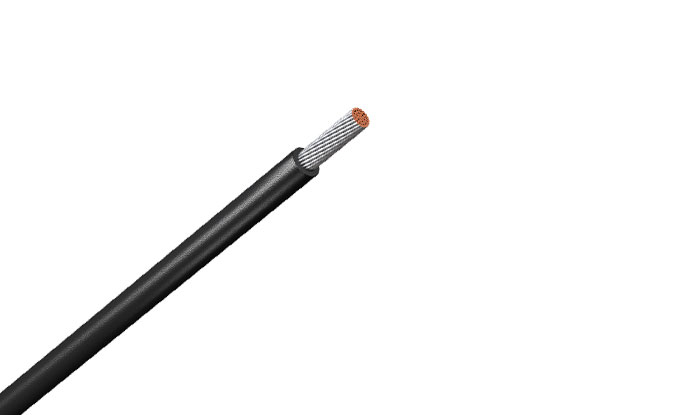

Hook Up Wire, UL Cable, UL Wire, UL1015

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

UL 1015 wire also has a wide variety of applications including internal wiring for appliance and electronic equipment, panels, meters, point-to-point wiring, wiring and cable assemblies in data and electronic equipment and many other applications.

UL1015 / AWM 1015 Characteristics

Temperature Range: -40°C to +105°C
Voltage Rating: 600 Volts

Specifications

Low Voltage

Cold Resistant -40℃

construction

Conductors:

Stranded or Solid Tinned Copper (denoted by 'T' in the part number) or Bare Copper (denoted by 'B' in part number).

Insulation:

Polyvinylchloride (PVC), Nominal Insulation Thickness: 0.031".

parameter

Hook Up Wire - UL1015

Section (AWG)	Number of strands (Nos)	Insulation thickness (inch)	Approx.Nominal OD (inch)
30	7	0.031	0.080
28	7	0.031	0.083
26	Solid or 7	0.031	0.084
24	Solid or 7	0.031	0.088
22	Solid or 7	0.031	0.089
20	Solid or 7	0.031	0.104
18	Solid or 7	0.031	0.115
16	Solid or 19	0.031	0.124
14	Solid or 19	0.031	0.134
12	Solid or 19	0.031	0.145
