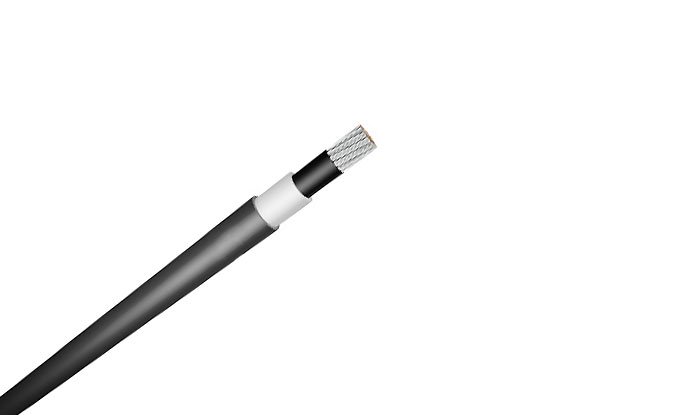

Jumper cable 5kV/15kV ASTM B173, ASTM B33, Flexible rubber insulated and sheathed cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

Suitable as a flexible power lead for temporary connection. Other industrial application.

Features:

Excellent flexiblility. Water resistant. Temperature range: -40℃ to +90℃. Ink jet printed or hot printed for easy indentification.

Specifications

Medium Voltage

Water Resistance

Working Temperature 90℃

Cold Resistant -40℃

construction

Conductors:

Annealed flexible stranded tined coated in accordance with ASTM B33 and ASTM B-173

Separator:

Smi-conducting tape separator between the conductor and insulation

Insulation:

Ethylene-propylene rubber(EPR)

Outer jacket:

A synthetic thermosetting CPE compound

Color of outer jacket:

Red

PARAMETER

Technical and Electrical Characteristic 15kV

Size	Conductor strand	Nominal insulation thickness	Nominal jacket thickness	Outside diameter	Approx. weight		Ampacity at 40℃ ambient Temp.
AWG		Inches	inches	inches	kgkm	Ibs/kft	A
2	259	0.175	0.08	0.823	715	480	195
1/0	414	0.175	0.08	0.898	952	640	255
2/0	522	0.175	0.08	0.945	1113	748	293
4/0	829	0.175	0.08	1.071	1565	1052	389
250	973	0.175	0.08	1.144	1795	1206	430
350	1361	0.175	0.08	1.26	2357	1584	529
500	1921	0.175	0.08	1.402	3109	2089	659
