Low Voltage Control Multi-Conductor Cable, UL listed cable, Type MC cable

OVERVIEW

SPECIFICATIONS

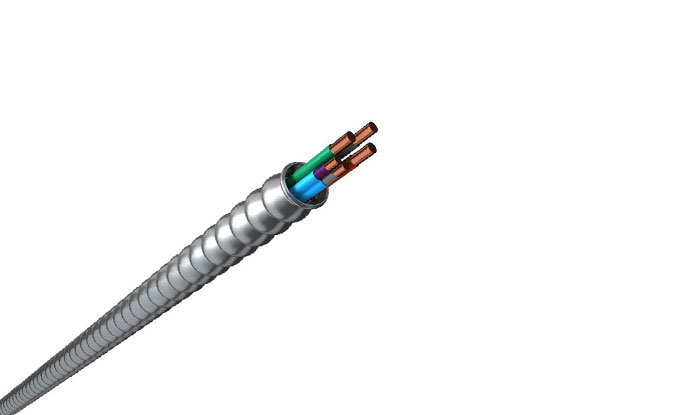

CONSTRUCTION

PARAMETER

Application

Economical and versatile alternate to a conduit system; for services, feeders and branch circuits in industrial and commercial applications; power, lighting, control and signal circuits; indoors or outdoors, in wet or dry locations, direct burial, in cable tray, in raceways, as open runs of cable, as aerial cable on a messenger, and in Class I, Division 1, hazardous locations.

Conductor Temperature

90°C dry or wet

Sizes

#14 AWG – #10 AWG

Specifications

Working Temperature 90℃

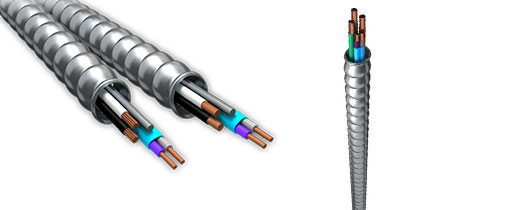

construction

Two or more stranded copper conductors (sizes #8 AWG and larger are compact stranded), insulated, with color-coded conductors, ground wire, fillers (as necessary), binder tape over core, corrugated aluminum sheath and jacket overall.

parameter

Type MC-HL (include grounding conductors)

conductor size & No. of strands	Number of ungrounded conductors	grounding conductor size	Insulation Thickness (mils)	C-L-X O.D. (inches)	Inner Jacket Thickness (mils)	Approx. O.D. (inches)	approx net weight (lbs/1000ft)
14(7x)	3	3x18 bare	30	0.53	50	0.64	160
14(7x)	4	3x18 bare	30	0.58	50	0.69	222
14(7x)	6	#14 green insulated	30	0.62	50	0.73	267
14(7x)	8	#14 green insulated	30	0.71	50	0.82	321
14(7x)	11	#14 green insulated	30	0.8	50	0.91	395
14(7x)	18	#14 green insulated	30	0.93	50	1.04	554
14(7x)	36	#14 green insulated	30	1.24	50	1.35	948
12(7x)	3	3x16 bare	30	0.58	50	0.69	239
12(7x)	4	3x16 bare	30	0.67	50	0.77	286
12(7x)	6	#12 green insulated	30	0.67	50	0.78	338
12(7x)	8	#12 green insulated	30	0.8	50	0.91	426
12(7x)	11	#12 green insulated	30	0.89	50	1	519
12(7x)	18	#12 green insulated	30	1.02	50	1.13	739
12(7x)	36	#12 green insulated	30	1.37	50	1.48	1302
10(7x)	3	3x14 bare	30	0.62	50	0.73	300
10(7x)	4	3x14 bare	30	0.67	50	0.78	348
10(7x)	6	#10 green insulated	30	0.75	50	0.86	451
10(7x)	8	#10 green insulated	30	0.89	50	1	568
10(7x)	11	#10 green insulated	30	0.97	50	1.08	704
