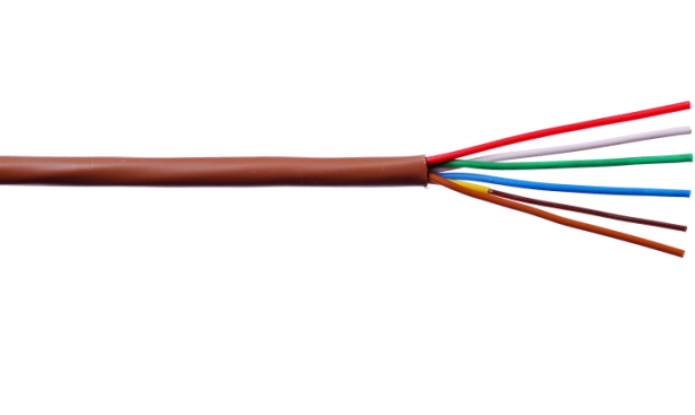

Low Voltage Thermostat (LVT) Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Leave your Feedback

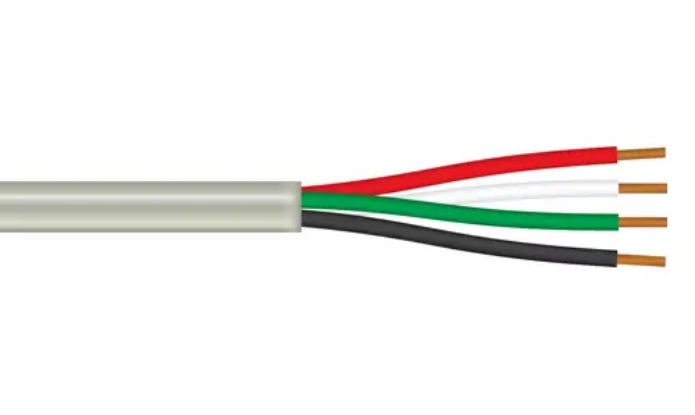

Overview

LVT cables are for use in wiring low voltage applications. These cables can be used in both damp or dry locations. Available in solid or stranded conductors from 18 awg to 16 awg in 2 to 10 conductors and rated at 30V.

Applications

Suitable for the following installations:
• For connecting Fire Alarm Signaling devices within a fire protective signaling system
• Low Voltage Thermostat in HVAC Systems
• Where LVT 60 cable is specified (30V)
• Low voltage heating and air conditioning controls, thermostats, door bells and annunciator systems, intercom systems, and burglar alarms.
These cables can be used in both damp or dry locations.

Features

Rated for temperature range of -20C to 105C (FAS) or -20°C to 60°C (LVT)
High grade PVC flame retardant insulation and jacket materials have excellent color definition and workability
Ripcord under jacket for jobsite ease of use

Standards

• CSA C22.2 No. 35, Extra-low-voltage control circuit cable (Type LVT)
• CSA C22.2 No. 2556 FT4, UL 1685 Vertical-Tray Flame Test
• IEEE 383 & 1202, ICEA T-30-520 (70,000 BTU/hr) Vertical Flame Test rated

Specifications

Low Voltage

UV Resistance

Flame Retardant

Fire Resistance

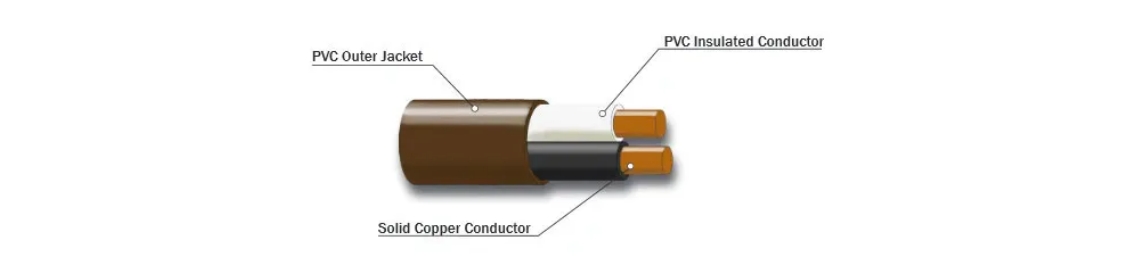

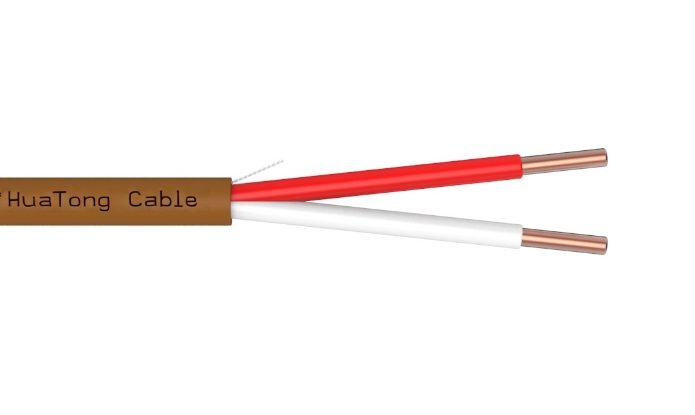

Construction

Conductors: Solid Bare Copper, 18 AWG and 16 AWG
Insulation: PVC or Polypropylene insulation
Jacket: PVC Brown Color(Normally) / Customized Available Also

Parameters

Thermostat Wire LVT 30V 16 & 18 AWG

CONDUCTOR SIZE	CONDUCTOR COUNT	INSULATION THICKNESS	JACKET THICKNESS	CABLE O.D.
18 AWG	2	0.015 in. 0.38 mm	0.030 in. 0.76 mm	0.201 in. 5.10 mm
18 AWG	2	0.015 in. 0.38 mm	0.030 in. 0.76 mm	0.215 in. 5.40 mm
18 AWG	3	0.015 in. 0.38 mm	0.030 in. 0.76 mm	0.211 in. 5.30 mm
18 AWG	4	0.015 in. 0.38 mm	0.030 in. 0.76 mm	0.231 in. 5.80 mm
18 AWG	5	0.015 in. 0.38 mm	0.030 in. 0.76 mm	0.241 in. 6.10 mm
18 AWG	6	0.015 in. 0.38 mm	0.030 in. 0.76 mm	0.258 in. 6.50 mm
18 AWG	8	0.015 in. 0.38 mm	0.030 in. 0.76 mm	0.288 in. 7.30 mm
18 AWG	10	0.015 in. 0.38 mm	0.030 in. 0.76 mm	0.316 in. 8.10 mm
16 AWG	2	0.015 in. 0.38 mm	0.030 in. 0.76 mm	0.222 in. 5.60 mm
16 AWG	2	0.015 in. 0.38 mm	0.030 in. 0.76 mm	0.225 in. 5.70 mm
16 AWG	3	0.015 in. 0.38 mm	0.030 in. 0.76 mm	0.234 in. 5.90 mm
16 AWG	4	0.015 in. 0.38 mm	0.030 in. 0.76 mm	0.255 in. 6.40 mm
