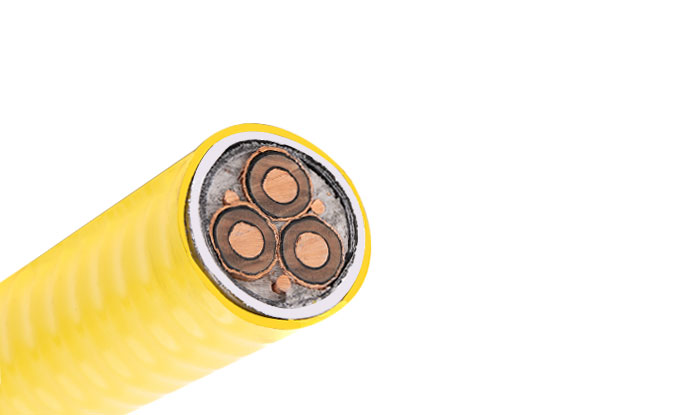

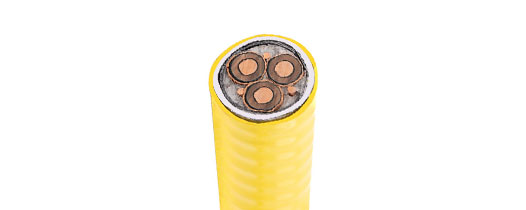

MC-HL Armored Cable 3 Conductors EPR PVC MC-HL/MV-105 5kV-133% 8kV-100%
MC-HL Armored Cable 3 Conductors EPR PVC MC-HL/MV-105 5kV-133% 8kV-100%
Get A Quote
Product Inquiry
Product Picture
Product name
MC-HL Armored Cable 3 Conductors EPR PVC MC-HL/MV-105 5kV-133% 8kV-100%
MC-HL Armored Cable 3 Conductors EPR PVC MC-HL/MV-105 5kV-133% 8kV-100%
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
Variable Frequency Drives: 3-conductor CCW armored cables with three symmetrical grounding wires are the preferred wiring method for use with AC motors controlled by pulse-width modulated inverters in VFD applications. For use in Class I, II and III, Divisions 1 and 2; or Class 1, Zones 1 and 2 hazardous locations per NEC Articles 501, 502, 503 and 505. For installation on metal racks, troughs, in raceways and cable trays, or secured to supports not more than six feet apart. For exposed and concealed work in wet or dry locations, directly buried or embedded in concrete. For use on feeders and branch circuits in industrial power distribution systems per NEC Articles 328 and 330.

Compliances

Industry: UL Type MV-105. UL Type MC-HL, XHHW-2, CT USE, SUN RES, DIR BUR -40ºC, FT4. UL Listed Marine Shipboard, American Bureau of Shipping (ABS) Listed for CWCMC.
Design Adherence: ICEA S-93-639/WC74, 5-46 kV Shielded Power Cable. AEIC CS8 Specification for Shielded Power Cable, 5-46 kV. UL 1072 Medium-Voltage Power Cables. UL 1569 Metal Clad Cables. UL 2225 Cables and Cable Fittings for Use in Hazardous Locations. UL 1309 Marine Shipboard Cable. CSA C68.3.
Flame Tests: ICEA T-29-520 (210,000 BTU/hr). IEEE 383 (70,000 BTU/hr). CSA FT4. IEEE 1202 (70,000 BTU/hr). UL 1072. IEC 60332-3 Category A.
Features:
Armor provides impervious barrier to moisture, gas and liquids. The strand shield, EPR insulation and insulation shield are extruded in one operation. The EPR insulation system has outstanding corona resistance and high dielectric strength, and it provides electrical stability under stress. Meets cold impact test at -40ºC.
Specifications
Medium Voltage
Medium Voltage
Cold Resistant -40℃
Cold Resistant -40℃
Flame Retardant
Flame Retardant
construction
Conductor:
6 AWG through 1000 kcmil bare annealed copper per ASTM B3. Compact stranding per ASTM B496.
Extruded Strand Shield (ESS):
Extruded thermoset semi-conductor stress control layer over the conductor per ICEA S-93-639 and UL 1072.
Insulation:
115 mil Ethylene Propylene Rubber (EPR) insulation per ICEA S-93-639 and UL 1072.
Extruded Insulation Shield (EIS):
Thermoset semi-conducting polymeric layer, free stripping from the insulation per ICEA S-93-639 and UL 1072.
Shield:
5 mil annealed bare copper tape with 25% overlap.
Grounding Conductor(s):
Three split Class B stranded bare annealed copper ground conductors sized in accordance with UL 1072 and NEC Article 250.
Armor:
Impervious, continuously welded and corrugated aluminum alloy sheath per UL 1072 and 1569. Meets grounding requirements of NEC Article 250.
Jacket:
Flame-retardant, moisture- and sunlight-resistant Polyvinyl Chloride (PVC), yellow. Low-temperature performance meets ASTM D746 brittleness temperature at or below -40ºC.
parameter
MC-HL/MV-105 5kV-133% 8kV-100%


Size (AWG
or
kcmil)



No. of
Strands



Insul. Thick. (Mils)

Nom. Diam. Over Armor
(Inches)



PVC Jkt.
Thick (Mils)

Nom. Diam. Over PVC Jkt.
(Inches)
Copper Phase Conductors

Copper Grounding Conductor (AWG)

Weight (lbs./1000 ft.)
Ampacity
Net Copper
In Air

Direct Burial
6 7 115 1.37 50 1.48 3 X #10 1121 460 88 115
4 7 115 1.51 60 1.65 3 X #10 1418 616 115 150
2 7 115 1.64 60 1.78 3 X #10 1731 860 154 190
1 19 115 1.69 60 1.82 3 X #8 1978 1074 180 215
1/0 19 115 1.78 60 1.91 3 X #8 2259 1290 205 245
2/0 19 115 1.92 60 2.05 3 X #8 2626 1556 240 280
4/0 19 115 2.15 60 2.28 3 X #7 3650 2344 320 360
250 37 115 2.23 60 2.36 3 X #7 4060 2759 355 395
350 37 115 2.45 75 2.61 3 X #6 5045 3713 440 475
500 37 115 2.75 75 2.92 3 X #5 7137 5191 545 570
750 61 115 3.32 85 3.50 3 X #4 10268 7629 685 700
1000 61 115 3.76 85 3.94 3 X #4 13051 10070 790 785
