Continuously Corrugated Welded Armored Power Cable, FR-XLP Insulation (XHHW-2), 600V/1kV, Type MC-HL

Application

All cables produced to this specification are recognized by the NEC as 600 Volt Type MC-HL and are suitable for use as described in the code. The conductor temperatures are rated for continuous operation of 90 degC, for emergency overload of 130 degC and for short circuit of 250 degC. The cables meet the requirements for application in NEC Class I, Class II and Class III, Div 1 and 2, Hazardous Locations covered under NEC Articles 501, 502 and 503. The cables are intended for use in industrial applications where aluminum armor protection is necessary. The continuously welded sheath serves to provide a completely moisture impervious barrier for the core as well as providing superior electro static shielding characteristics. The cables may be used in wet or dry applications, installed in racks, trays or aerially.
These cables have an overall jacket and can be direct buried in earth and buried in concrete.
Three conductor cables are manufactured in accordance with industry accepted practice of using three symmetrically placed grounds making them advantageous for use in pulse-width modulated cables and variable frequency drive applications.

Standards:

National Fire Protection Association (NFPA 70) National Electric Code (NEC) UL 1569 Metal Clad Cables.
UL 44 Thermoset-Insulated Wires and Cables.
ICEA S-95-658/NEMA WC70 Nonshielded 0-2kV Cables.
IEEE 1202 - Flame Testing of Cable for use in Cable Tray in Industrial and Commercial Occupancies (70,000 BTU) ICEA T-29-520 Vertical Cable Tray Flame Tests (210,000 BTU).
Conforms to Standard ICEA S-95-658/NEMA WC70 Nonshielded 0-2KV Cables. Conductors conforms to Standard UL 44 Thermoset-Insulated Wires and Cables. Listed by UL as Type MC-HL per Standard UL 1569 Metal-Clad Cables.
Listed by UL as Sunlight Resistant, for Direct Burial, For CT Use and IEEE 1202.

Notes

Based on single cable in uncovered cable tray at 30°C ambient temperature per NEC. For other installations refer to the NEC.

Specifications

Low Voltage

UV Resistance

LSZH

Working Temperature 90℃

Flame Retardant

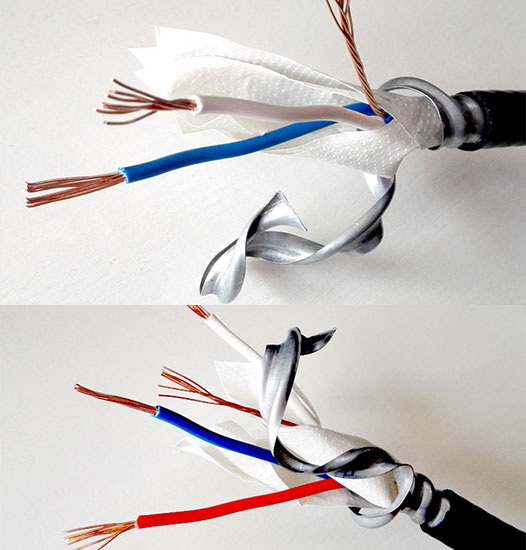

construction

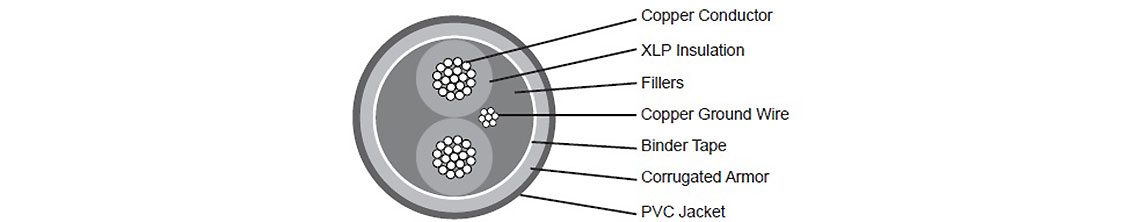

This specification covers single and multi-conductor power cables insulated with flame retardant crosslinked polyethylene (XLP). The insulated conductors cabled with a ground wire or wires, and the assembly are encased in a moisture impervious continuously welded corrugated aluminum armor, and covered with a protective jacket overall. Three conductor type cables are constructed for VFD applications.

Conductors:

The conductors consist of uncoated soft, copper strands meeting the requirements of ASTM B3. Unless otherwise specified the conductors are supplied as compact round per ASTM B496.

Insulation:

The insulation is flame-retardant crosslinked polyethylene (XHHW-2) extruded concentrically over the conductor to the wall thickness for Type XHHW-2 as specified in the relevant governing specification.

Conductor Coding:

Phase identification is provided by number code on each insulated conductor.

Ground Wire:

Three stranded bare copper ground wires located in each of the outer interstices for 3 conductor cables, one in one of the interstices for 2 or 4 conductor cables, or helically applied concentric wires for single conductor cables. The total ground wire cross section in all cases meets the minimum UL requirements for ground size.

Assembly:

Conductors and ground wire are cabled together with a left hand lay and suitable fillers make the cable round. A binder tape is applied.

Armor:

Over the taped assembly there is continuously welded corrugated aluminum armor.

Jacket:

A protective sunlight and ozone resistant PVC or low smoke halogen free (LSHF) polyolefin jacket is extruded for a tight fit over the interlocked armor.

parameter

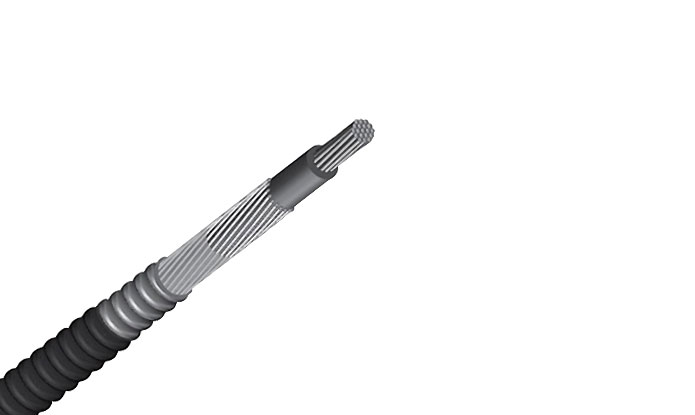

Type MC-HL 1/C

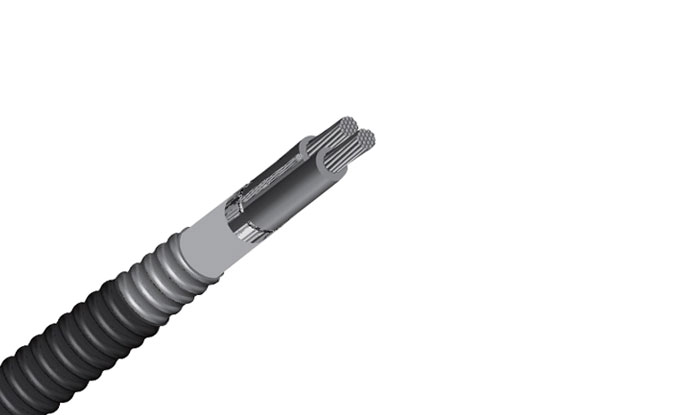

Type MC-HL 2/C

Type MC-HL, CWCMC, VFD 3/C

Type MC-HL, CWCMC 1kV, VFD 4/C

Type MC-HL 5/C

Conductor Size (AWG/kcmil)	Conductor No. of Strands	Conductor Nominal O.D. (inches)	Insulation (mils)	Jacket (mils)	No. x AWG Copper Ground Wires	Approximate O.D. (inches)	Ampacity** 90°C	Approximate Net Weight (lb/MFT)
1/0	19	0.34	55	50	10 x 14	1.19	170	800
2/0	19	0.38	55	50	10 x 14	1.23	195	900
3/0	19	0.42	55	50	13 x 14	1.28	225	1065
4/0	19	0.48	55	50	16 x 14	1.33	260	1255
250	37	0.52	65	50	10 x 12	1.44	295	1440
300	37	0.57	65	50	13 x 12	1.44	325	1660
350	37	0.62	65	50	13 x 12	1.44	370	1820
400	37	0.66	65	50	16 x 12	1.44	400	2040
500	37	0.74	65	50	16 x 12	1.44	455	2360
600	61	0.81	80	60	16 x 12	1.57	585	2735
750	61	0.91	80	60	13 x 10	1.77	660	3375
1000	61	1.12	80	60	16 x 10	1.87	790	4305

Conductor Size (AWG/kcmil)	Conductor No. of Strands	Conductor Nominal O.D. (inches)	Insulation (mils)	Jacket (mils)	No. x AWG Copper Ground Wires	Approximate O.D. (inches)	Ampacity** 90°C	Approximate Net Weight (lb/MFT)
8*	7	0.14	45	50	10	0.86	55	380
6*	7	0.18	45	50	6	0.96	75	500
4*	7	0.23	45	50	8	1.06	95	640
2	7	0.27	45	50	6	1.16	130	865
1	19	0.30	55	50	6	1.44	150	1110
1/0	19	0.34	55	50	6	1.44	170	1265
2/0	19	0.38	55	50	6	1.44	195	1460
3/0	19	0.42	55	50	4	1.57	225	1790
4/0	19+	0.48	55	60	4	1.77	260	2155
250	37	0.52	65	60	4	1.77	290	2450
300	37	0.57	65	60	3	1.87	320	2865
350	37	0.62	65	60	3	2.06	350	3265
400	37	0.68	65	60	3	2.06	380	3615
500	37	0.74	65	60	2	2.28	430	4410
750	61	0.91	80	75	1	2.79	535	6505

Conductor Size (AWG/kcmil)	Conductor No. of Strands	Conductor Nominal O.D. (inches)	Insulation (mils)	Jacket (mils)	No. x AWG Copper Ground Wires	Approximate O.D. (inches)	Ampacity** 90°C	Approximate Net Weight (lb/MFT)
8*	7	0.14	45	50	3 x 14	0.91	55	465
6*	7	0.18	45	50	3 x 12	1.01	75	615
4*	7	0.23	45	50	3 x 12	1.11	97	810
2	7	0.27	45	50	3 x 10	1.44	130	1205
1	19	0.3	55	50	3 x 10	1.44	150	1415
1/0	19	0.34	55	50	3 x 10	1.44	170	1645
2/0	19	0.38	55	50	3 x 10	1.57	195	1965
3/0	19	0.42	55	50	3 x 8	1.57	225	2375
4/0	19	0.48	55	60	3 x 8	1.77	260	2880
250	37	0.52	65	60	3 x 8	1.87	290	3340
350	37	0.62	65	60	3 x 6	2.28	350	4520
400	37	0.66	65	60	3 x 6	2.28	375	5070
500	37	0.74	65	75	3 x 6	2.58	430	6260
750	61	0.91	80	75	3 X 4	3.08	535	9100
1000*	61	1.12	80	85	3 X 4	3.33	615	11965

Conductor Size (AWG/kcmil)	Conductor No. of Strands	Conductor Nominal O.D. (inches)	Insulation (mils)	Jacket (mils)	No. x AWG Copper Ground Wires	Approximate O.D. (inches)	Ampacity** 90°C	Approximate Net Weight (lb/MFT)
2	7	0.27	45	50	6	1.44	104	1440
1	19	0.30	55	50	6	1.44	120	1705
1/0	19	0.34	55	50	6	1.57	136	2045
2/0	19	0.38	55	60	6	1.77	156	2480
3/0	19	0.42	55	60	4	1.77	180	3000
4/0	19	0.48	55	60	4	1.87	208	3620
250	37	0.52	65	60	4	2.06	232	4240
350	37	0.62	65	60	3	2.28	280	5690
500	37	0.74	65	75	2	2.79	344	7990
600	61	0.81	80	75	2	3.08	380	9535
750	61	0.91	80	85	1	3.33	428	11800
1000*	61	1.12	80	85	1/0	3.90	492	15500

Conductor Size (AWG/kcmil)	Conductor No. of Strands	Conductor Nominal O.D. (inches)	Insulation (mils)	Jacket (mils)	No. x AWG Copper Ground Wires	Approximate O.D. (inches)	Ampacity** 90°C	Approximate Net Weight (lb/MFT)
8*	7	0.14	45	50	10	1.06	44	700
6*	7	0.18	45	50	8	1.14	60	855
4*	7	0.23	45	50	8	1.44	88	1235
2	7	0.27	45	50	6	1.44	104	1685
1	19	0.30	55	50	6	1.57	120	2055
1/0	19	0.34	55	60	6	1.77	136	2490
2/0	19	0.38	55	60	6	1.77	156	2960
3/0	19	0.42	55	60	4	1.87	180	3625
4/0	19	0.48	55	60	4	2.06	208	4420
250	37	0.52	65	60	4	2.28	232	5190
300	37	0.57	65	75	3	2.58	256	6245
350	37	0.62	65	75	3	2.58	280	7090
