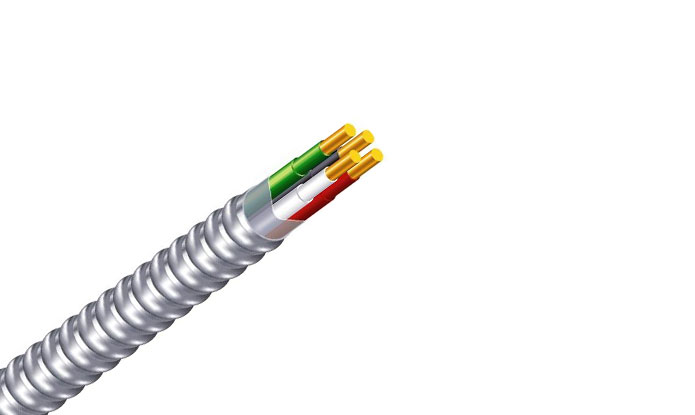

MC Cable With THHN Ground
MC Cable With THHN Ground
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK

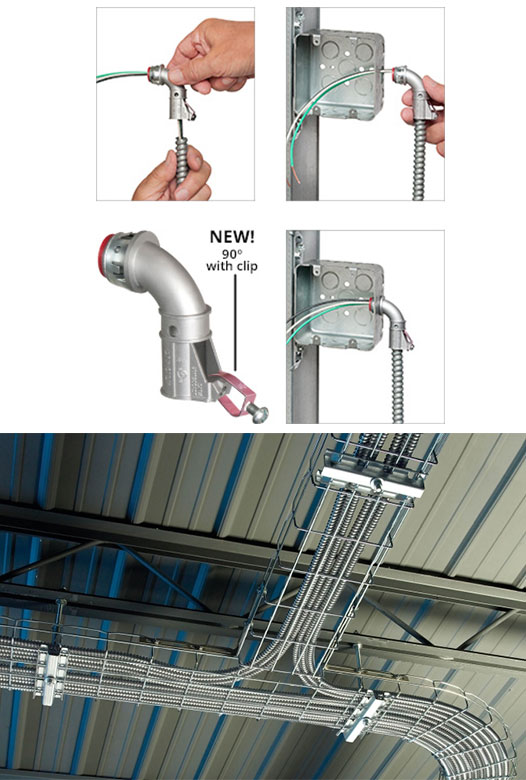

Application
Type MC Cable is suitable for use as follows:
•Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.
•Power, lighting, control, and signal circuits.
•Fished or embedded in plaster.
•Concealed or exposed installations.
•Environmental air-handling spaces per NEC 300.22 (C).
•Places of Assembly per NEC 518.4 and theaters per NEC 520.5.
•Installation in cable tray and approved raceways.
•Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).
•Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.
Standards & References
Type MC Cable meets or exceeds the requirements of the following
•UL 83
•UL 1569
•UL 1685
•Federal Specification A-A59544 (formerly J-C-30B)
•FT4/IEEE 1202 (70,000 Btu/hr) Vertical Cable Tray Flame Test
•NEC
•Listed for use in UL 1, 2 and 3 Hour Through Penetration Firestop Systems

Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90°C dry available in sizes 14 AWG through 2 AWG, and a green insulated grounding conductor. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly.
Features
•Reduces installation costs up to 50% over pipe and wire.
•Lightweight aluminum armor--as much as 45% lighter than steel MC Cable.
•UL Classified 1, 2, and 3 hour Through Penetration Firestop Systems: W-J-3037, W-L-3110, W-L-3113, W-L-3117, W-L-3120, W-L-3121, W-L-3160, C-AJ-3115, C-AJ-3140, C-AJ-3142, C-AJ-3145, C-AJ-3173, C-AJ-3202, C-AJ-4065, C-AJ-4066, F-C-3038.

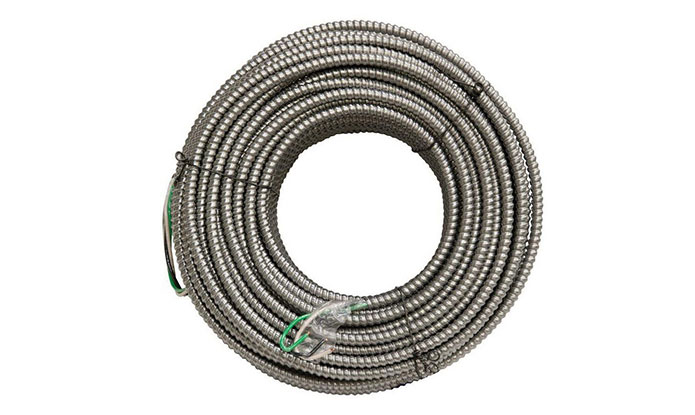

•Cable reverse wound on reel for ease of pulling and installation. When pulling from coils, pull from inside to ensure ease of installation.
•Anti-short bushings are not required for use with MC cable per the NEC and UL
Specifications
Low Voltage
Low Voltage
Working Temperature 90℃
Working Temperature 90℃
Fire Resistance
Fire Resistance

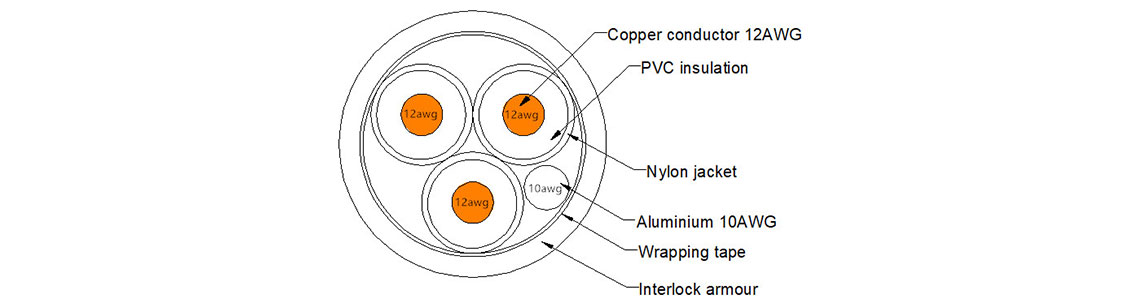

construction
Lightweight Aluminum Interlocked Armor. 600 Volts. Copper Power Conductors. THHN/THWN Insulated Singles. Green Insulated Grounding Conductor. Sizes 14 AWG through 2 AWG. Rated VW-1.
PARAMETER
MC Cable With THHN Ground
Conductor Size+ (AWG) Solid or Stranded Grounding Conductor Size (AWG) and Stranding Overall Diameter (inches) Weight (lbs./1000ft.)
Ampacity (Amps)
          60℃ 75℃ 90℃
14-2 Solid 14-1 0.433 100 15 15 15
12-2 Solid 12-1 0.469 129 20 20 20
12-3 Solid 12-1 0.501 157 20 20 20
12-4 Solid 12-1 0.537 187 20 20 20
10-2 Solid 10-1 0.537 181 30 30 30
10-3 Solid 10-1 0.577 225 30 30 30
10-4 Solid 10-1 0.622 270 30 30 30
8-3 7 10-7 0.706 320 40 50 55
8-4 7 10-7 0.754 408 40 50 55
6-3 7 8-7 0.785 471 55 65 75
6-4 7 8-7 0.862 580 55 65 75
