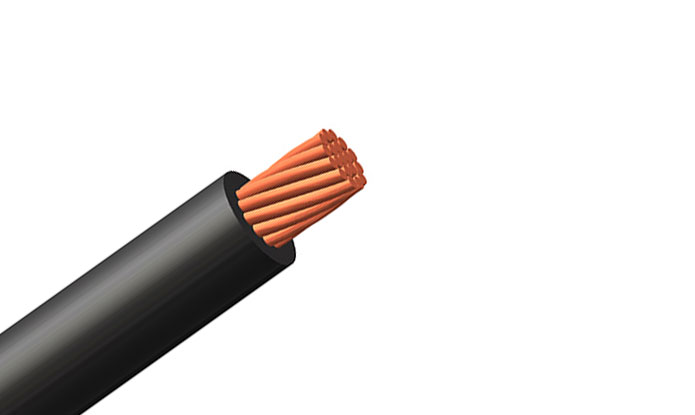

RW90 cable, Copper Cable, XLPE Insulation Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

RW90 cables are primarily use for power distribution. RW90 cables may be used in wet or dry locations, with ambient temperatures not exceeding 90°C. Voltage rating for RW90 cable is 600V.

Standards:

RW90 meets or exceeds the following standards:
CUL standard 44
Requirements of the Canadian Electrical Code
ASTM standards B 800, B 801
Sunlight resistant

Specifications

Low Voltage

UV Resistance

Working Temperature 90℃

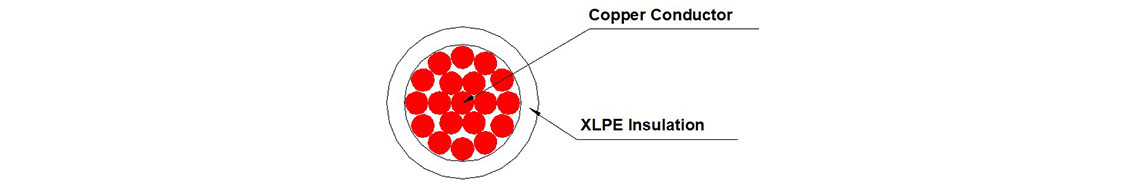

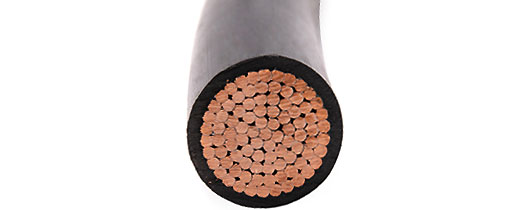

construction

Conductor:

RW90 conductor is a compact soft drawn bare copper, with Class B stranding per ASTM

Insulation:

RW90 has abrasion, heat and moisture resistant cross-linked polyethylene insulation XLPE.

parameter

Copper RW90 600V XLPE Insulation Cable

Size AWG	Stranding	Conductor Diameter (inches)	Insulation Thickness (inches)	Overall Diameter (inches)


14	7	0.073	0.03	0.133
12	7	0.092	0.03	0.158
10	7	0.116	0.03	0.18
8	7	0.146	0.045	0.24
6	7	0.184	0.045	0.28
4	7	0.232	0.045	0.328
3	7	0.26	0.045	0.355
2	7	0.292	0.045	0.38
1	7	0.332	0.055	0.434
1/0	19	0.373	0.055	0.473
2/0	19	0.419	0.055	0.517
3/0	19	0.47	0.055	0.567
4/0	19	0.528	0.055	0.623
250	37	0.575	0.065	0.705
300	37	0.63	0.065	0.76
350	37	0.681	0.065	0.811
400	37	0.728	0.065	0.858
500	37	0.813	0.065	0.943
