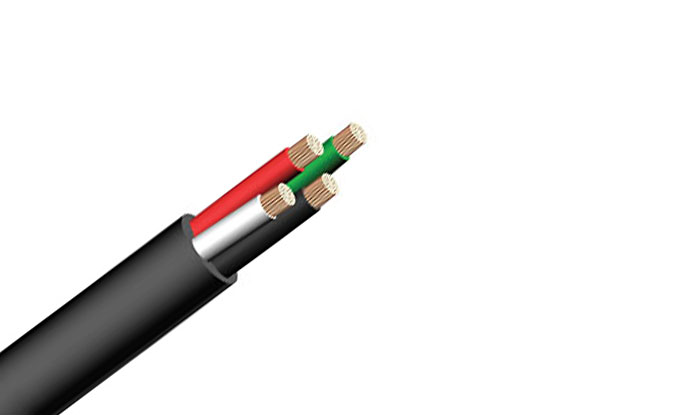

Application

For wiring within the casing of deep well submersible water pumps.

Standards:

UL 83 Type THHN as Deep Well Submersible Pump Cable

Specifications

construction

Conductor:

Circuit conductors are extra-flexible stranded (Class K 413/30), soft-drawn bare copper per ASTM B-3 and ASTM B-172 for high flexibility.
Grounding conductor is (Class K 168/30), soft-drawn bare copper per ASTM B-3 and ASTM B-172 for high flexibility.

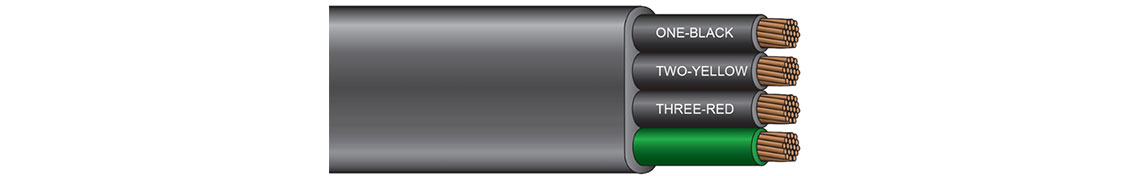

Conductors are color-coded black, yellow, red with a green ground.

Insulation:

Heat and moisture resistant PVC per UL-83

CONDUCTOR JACKETING:

Nylon jacket per UL-83

CABLING:

Flat parallel conductor grouping, with the jacketing applied directly over and between the conductors.

JACKET:

heat and moisture resistant PVC jacket per UL-83 meeting the thickness requirements of UL-83

parameter

Submersible Pump Cable

Number of insulated conductor	Conductor size (AWG)	Insulation thickness average (mils)	Jacket thickness (mils)	Cable OD
Number of insulated conductor	Conductor size (AWG)	Insulation thickness average (mils)	Jacket thickness (mils)	inch	mm
3	12	15	30	0.480 x 0.200	12.2 x 5.0
3	10	20	30	0.580 x 0.240	14.7 x 6.0
3	8	30	45	0.780 x 0.320	19.8 x 8.1
3	6	30	45	0.900 x 0.360	22.8 x 9.1
3	4	40	45	1.120 x 0.440	28.4 x 11.1
3	2	40	45	1.320 x 0.500	33.5 x 12.7
3	1/0	50	60	1.290 x 0.635	32.7 x 16.1
3	2/0	50	60	1.395 x 0.685	35.4 x 17.3
