Standards:

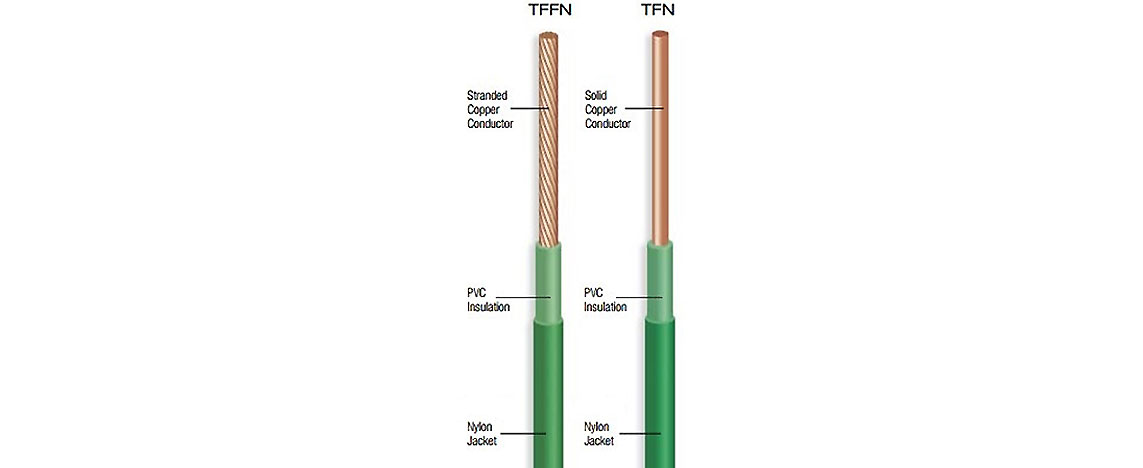

Type TFFN or MTW or AWM complies with:
• ASTM- All Applicable Standards
• UL Standards 66, 758, and 1063
• National Electrical Code, NFPA 70, 2011 Edition
• RoHS/REACH
Features
Voltage for all applications is 600 volts. Allowable temperatures are as follows:
• TFFN- Dry locations not to exceed 90°C
• MTW- Wet locations or when exposed to oil or coolant at temperatures not to exceed 60°C
• MTW- Dry locations at Temperatures not to exceed 90°C (with ampacity limited to that for 75°C conductor temperature per NFPA 79)
• AWM- When rated as appliance wiring material in dry locations, conductor temperatures not to exceed 105°C
