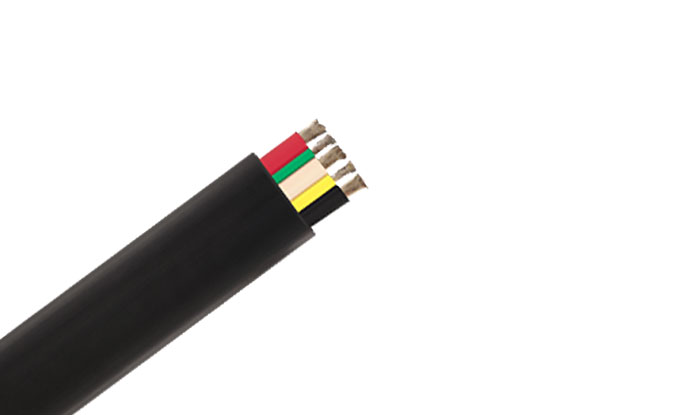

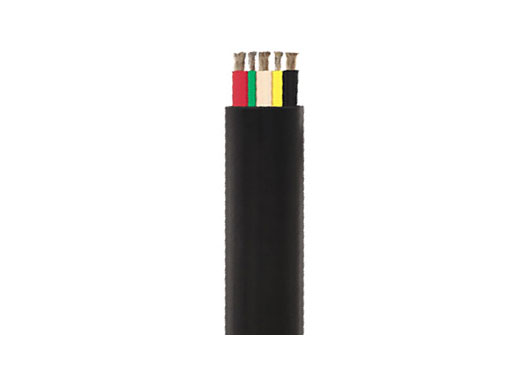

Type G-GC Flat Cable, Power Cable, Flat Portable Cable, 3 Conductors Cable

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

Application

•Designed for use as trailing cables on AC mining equipment:
-Where ground monitoring is accomplished with a ground-check conductor
-Where induced voltages in the grounding system do not present a hazard

Compliances

•ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
•Meets flame test requirements and is accepted for listing by MSHA

Features

•Flat construction provides maximum resistance to damage from crushing and runovers
•Shaped insulation to prevent conductors from shifting under the jacket
•Excellent physical toughness and heat stability
•Excellent heat, moisture, steam, oil, chemical, radiation and compression cut resistance

Specifications

Low Voltage

Working Temperature 90℃

Oil Resistance

Flame Retardant

construction

Conductor:

6 AWG thru 4/0 AWG coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172

Insulation:

Ethylene Propylene Rubber (EPR) insulation colored (black, white and red)

Ground-Check Conductor:

Coated copper, rope-lay-stranded and shaped ground-check conductor is insulated with a yellow elastomer

Grounding Conductor:

Coated copper, rope-lay-stranded and shaped with a green elastomer covering designed to keep the grounding conductor in place in the flat assembly

Jacket:

Extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE)

parameter

THREE CONDUCTOR, FLAT PARALLPORTABLE W/GROUND-CHECK, TYPE G-GC

NO. OF COND.	COND. SIZE (AWG)	COND. STRAND	NOMINAL INSULATION THICKNESS		GRD. COND. SIZE (AWG)	GRD-CHECK COND. SIZE (AWG)	NOMINAL CABLE DIMENSIONS	NET WEIGHT
								NET WEIGHT
								kg/ km
			INCHES	mm			mm	kg/ km
3	6	133	0.06	1.5	8	8	16.8 x 42.4	1340
3	4	259	0.06	1.5	7	8	18.3 x 47.5	1750
3	3	259	0.06	1.5	6	6	19.8 x 52.8	2080
3	2	259	0.06	1.5	5	6	21.6 x 56.6	2415
3	1	259	0.08	2	4	6	24.4 x 63.5	3110
3	1/0	259	0.08	2	3	5	25.6 x 67.8	3675
3	2/0	329	0.08	2	2	5	27.7 x 68.1	4375
3	3/0	413	0.08	2	1	5	30.0 x 79.2	5230
3	4/0	532	0.08	2	1/0	5	31.5 x 83.8	6315
