CU/PVC/AWA/PVC Electrical Cable
CU/PVC/AWA/PVC Electrical Cable
BS 6343 CU/PVC/AWA/PVC Electrical Cable
Get A Quote
Product Inquiry

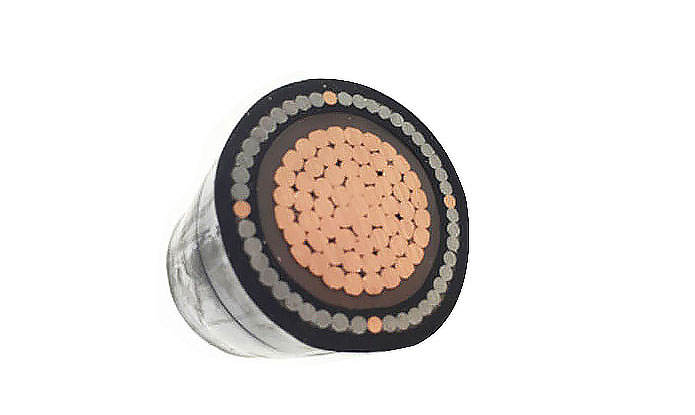

Product Picture
Product name
CU/PVC/AWA/PVC Electrical Cable
BS 6343 CU/PVC/AWA/PVC Electrical Cable
OVERVIEW
SPECIFICATIONS

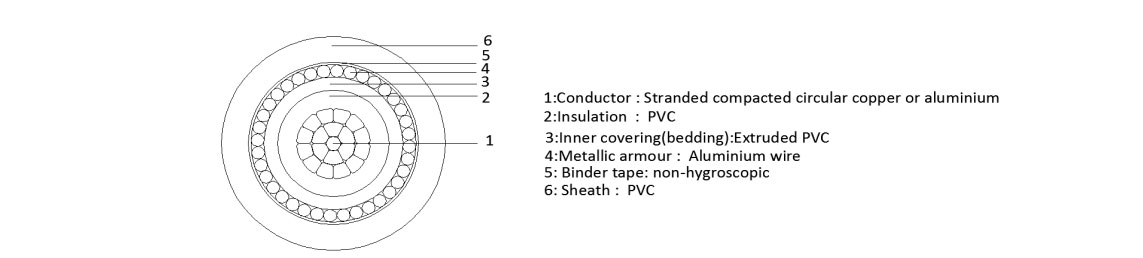

CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
overview
PVC insulated and PVC sheathed steel or aluminium wires armoured cables for the supply of electrical energy. and auxiliary control cables for power networks,underground, outdoors, indoors and in cable ducts.
Feature:
Voltage Rating (Uo/U): 600/1000V
Temperature Rating: Fixed: -25°C to +90°C
Conductor: Solid/Stranded Bare Copper
Insulation: PVC
Bedding: PVC or PP Filler
Armour: AWA (Aluminium Wire Armour) Single Core
Armour: SWA (Steel Wire Armour) Multi-Cores
Sheath: PVC
Minimum Bending Radius
1.5mm2 to 16mm2 - Fixed: 6 x overall diameter
25mm2 and above - Fixed: 8 x overall diameter
Specifications
Low Voltage
Low Voltage
Cold Resistant -25℃
Cold Resistant -25℃
Working Temperature 90℃
Working Temperature 90℃

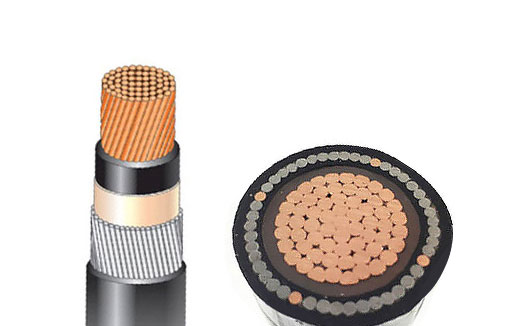

construction
parameter
AWA Armour
Type Nominal section area
mm2
Conductor diameter
 mm
Nominal thickness of insulation
mm
Diameter of Aluminium Wire
 mm
Nominal sheath thickness
mm
Approx. overall diameter
mm
Approx.weight of cable
kg/km
Maximum DC resistance of the conductor
Ω/km
Cu Al 20℃ Cu 20℃ Al
AWA armour 1×10 CC 3.8 1.0 0.8 1.8 11.8 283.2 222.8 1.83 13.08
1×16 CC
1×25 CC
1×35 CC
1×50 CC
1×70 CC
4.8
6.0
7.0
8.4
10.0
1.0
1.2
1.2
1.4
1.4
0.8
1.25
1.25
1.25
1.25
1.8
1.8
1.8
1.8
1.8
12.8
14.4
15.4
17.2
18.8
356.3
481.1
595.4
782.2
1002.1
257.3
326.4
378.8
472.9
569.0
1.15
0.727
0.524
0.387
0.268
1.91
1.20
0.868
0.641
0.443
1×95 CC
1×120 CC
1×150 CC
1×185 CC
1×240 CC
11.5
13.0
14.5
16.2
18.4
1.6
1.6
1.8
2.0
2.2
1.6
1.6
1.6
1.6
1.6
1.8
1.8
1.8
1.8
1.9
20.7
22.2
24.1
26.2
28.9
1285.0
1548.0
1879.8
2264.9
2853.8
697.2
805.6
951.7
1120.3
1369.0
0.193
0.153
0.124
0.0991
0.0754
0.320
0.253
0.206
0.164
0.125
1×300 CC
1×400 CC
1×500 CC
1×630 CC
20.5
23.5
26.5
30.0
2.4
2.6
2.8
2.8
2.0
2.0
2.0
2.5
1.9
2.1
2.2
2.3
31.6
35.2
40.2
45.2
3493.6
4530.9
5966.8
7302.1
1637.5
2056.1
2873.3
3404.3
0.0601
0.0470
0.0366
0.0283
0.100
0.0778
0.0605
0.0469

Note:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
