XLPE Insulation SWA Armored Power Cable
XLPE Insulation SWA Armored Power Cable
BS 5467 XLPE Insulation SWA Armored Power Cable
Get A Quote
Product Inquiry

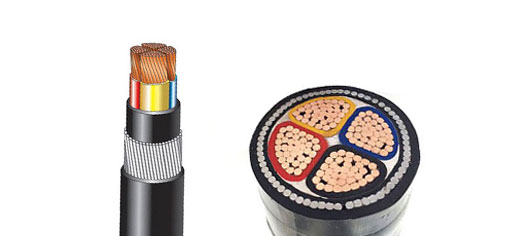

Product Picture
Product name
XLPE Insulation SWA Armored Power Cable
BS 5467 XLPE Insulation SWA Armored Power Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Overview
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.
Standard:
BS 5476 . AS/NZS 5000,1
Production Range:
Rated Voltage U0/U(Um) (kV) : 0.6/1(1.2)  No. of cores :  1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2 Nominal cross-section(mm2): 1.5~630.
Specifications
Low Voltage
Low Voltage
LSZH
LSZH

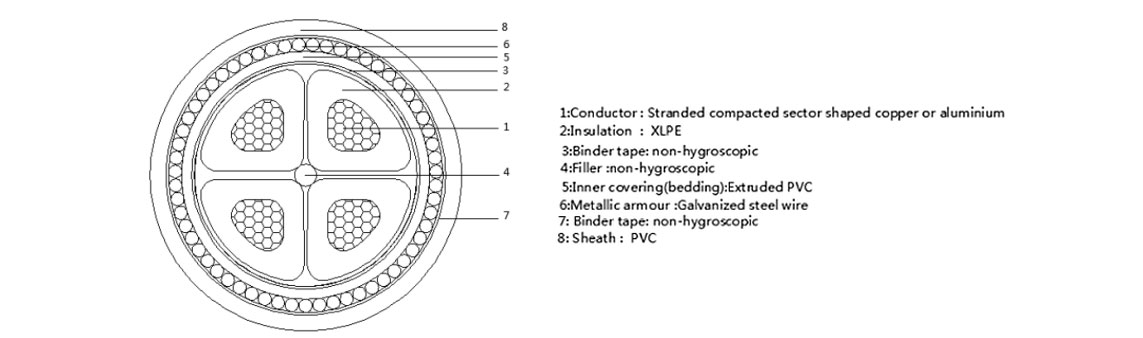

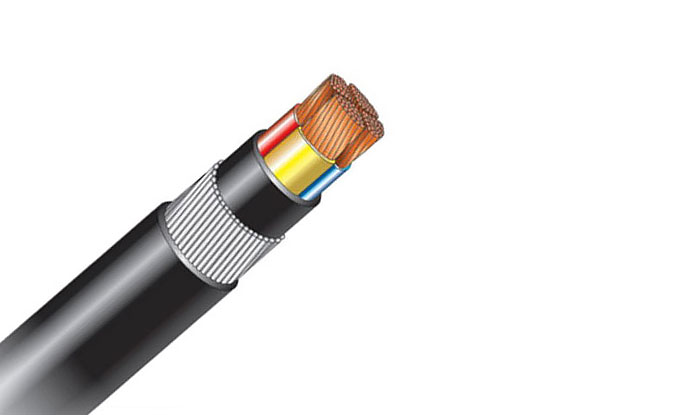

construction

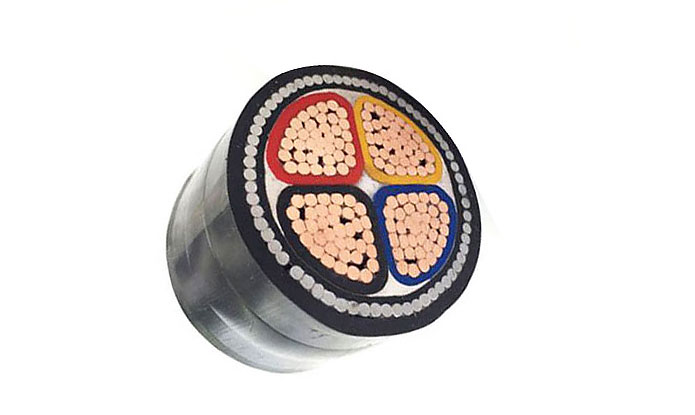

Conductor shaped:
RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
Conductors:
Plain circular, compacted or shaped stranded copper or aluminium conductor
Insulation:
XLPE (cross-linked polyethylene) rated at 90°C
Assembly /Inner Sheath:
Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour:
 Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath:
Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials suchas LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.
parameter
XLPE/SWA
Type Specification Outer diameter Nominal thickness of insulation Diameter of
steel wire
Nominal sheath thickness Approx. Outer diameter of cable Approx. Weight of cable Ampacity of cable
 Air Soil
CU AL Cu Al Cu Al
XLPE/SWA mm2 mm mm mm mm mm kg/km kg/km A A A A
4×4 RE 2.24 0.7 1.25 1.8 19.1 770 670 37 28 46 35
4×6 RE 2.76 0.7 1.25 1.8 20.3 916 772 47 37 56 46
4×10 CC 3.8 0.7 1.6 1.8 22.3 1148 895 64 47 76 56
4×16 CC 4.8 0.7 1.6 1.8 24.5 1472 1070 84 64 98 76
4×25 CC 6.0 0.9 1.6 1.8 27.5 1942 1317 115 84 126 98
4×35 CC 7.0 0.9 1.6 1.8 29.5 2386 1521 141 115 152 126
4×50 SM 8.0 1.0 2.0 1.9 32.9 3209 2036 172 141 181 152
4×70 SM 9.5 1.1 2.0 2.1 36.7 4197 2502 218 172 222 181
4×95 SM 11.0 1.1 2.0 2.3 40.5 5362 3016 269 218 267 222
4×120 SM 12.4 1.2 2.5 2.4 45.3 6908 3940 313 269 305 267
4×150 SM 13.8 1.4 2.5 2.6 50.0 8327 4683 359 313 344 305
4×185 SM 15.4 1.6 2.5 2.7 54.2 10044 5466 405 359 383 344
4×240 SM 17.5 1.7 2.5 2.9 60.4 12672 6666 451 405 442 383
4×300 SM 19.6 1.8 2.5 3.1 65.7 15302 7795 497 451 461 422

Note: RE=circular solid, CC=compacted circular stranded, SM=sector shaped stranded
