PVC Insulation SWA Armored Power Cable
PVC Insulation SWA Armored Power Cable
PVC Insulation SWA Armored Power Cable
BS 6346 PVC Insulation SWA Armored Power Cable
Get A Quote
Product Inquiry

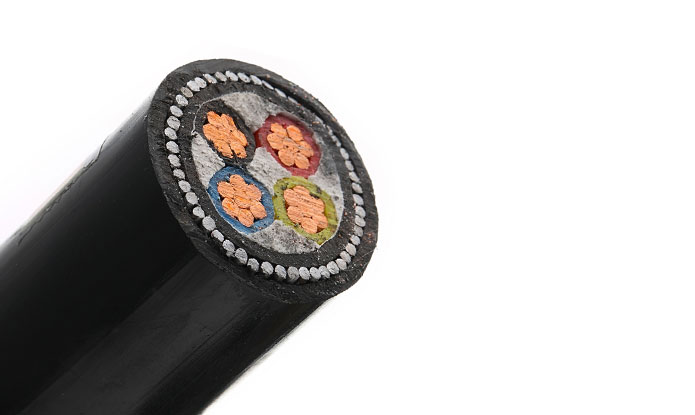

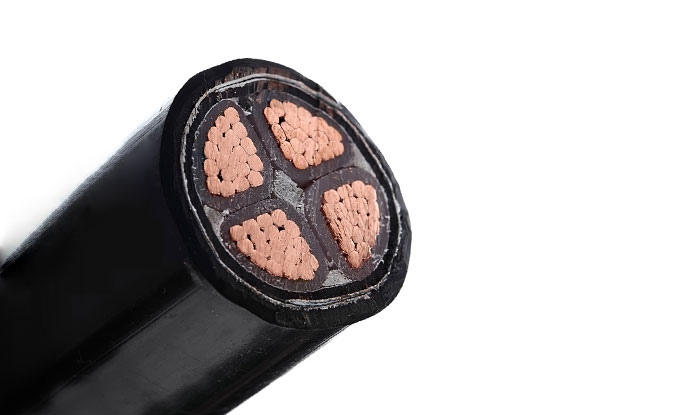

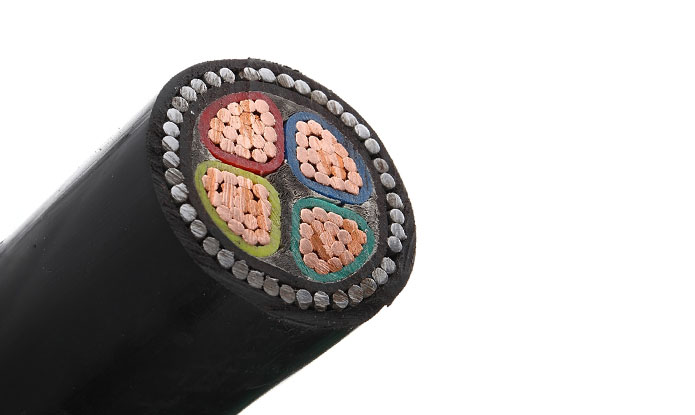

Product Picture
Product name
PVC Insulation SWA Armored Power Cable
BS 6346 PVC Insulation SWA Armored Power Cable
OVERVIEW
SPECIFICATIONS

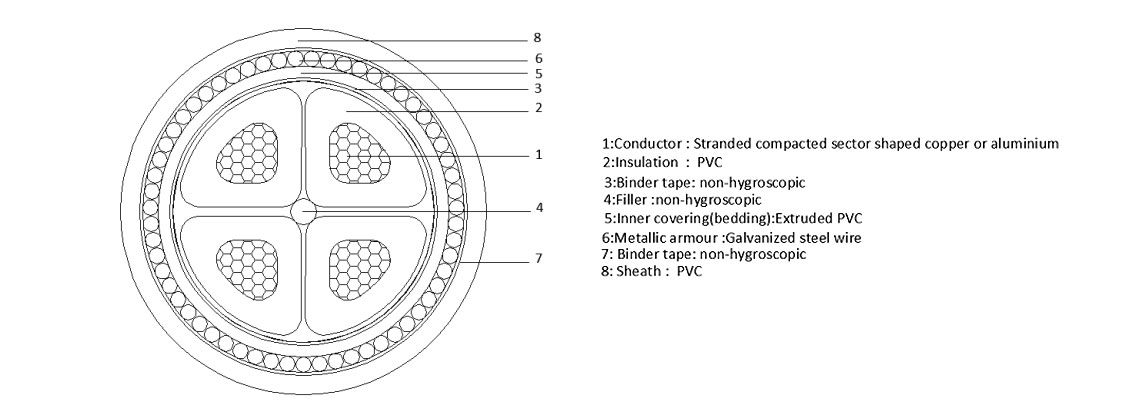

CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
overview
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.
Production Range:
Rated Voltage U0/U(Um) (kV) : 0.6/1(1.2)  No. of cores :  1 , 2 , 3, 4 , 5, 3+1 , 4+1 ,3+2 Nominal cross-section(mm2): 1.5~630
Standards:
BS 6346 AS/NZS 5000,1 5000,2
Specifications
Low Voltage
Low Voltage
construction

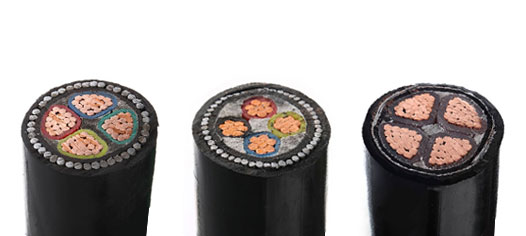

Conductor shaped:
RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
Conductors:
Plain circular, compacted or shaped stranded copper or aluminium conductor
Insulation:
XLPE (cross-linked polyethylene) rated at 90°C
Assembly /Inner Sheath:
Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted
Armour:
Aluminum/Galvanized Steel Wires, single core cables shall be Aluminium wire armour, Aluminum/Steel Tapes applied helically over the bedding of multi-core cables
Outer Sheath:
Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials suchas LLDPE, MDPE, HDPE, LSZH, and CPE are available on request.
parameter
SWA
Type Nominal section area
mm2
Conductor diameter
mm
Nominal thickness of insulation
mm
Diameter of Steel Wire
 mm
Nominal sheath thickness
mm
Approx. overall diameter
mm
Approx.weight of cable
kg/km
Maximum DC resistance of the conductor
Ω/km
Cu Al 20℃ Cu 20℃ Al
SWA 4×1.5 RE
4×2.5 RE
4×4 RE
4×6 RE
4×10 CC
1.38
1.78
2.24
2.76
3.8
0.8
0.8
1.0
1.0
1.0
0.8
0.8
1.25
1.25
1.25
1.8
1.8
1.8
1.8
1.8
13.2
14.2
16.3
17.5
20.0
430
502
774
927
1215
-
440
674
778
972
12.1
7.41
4.61
3.08
1.83
-
12.1
7.41
4.61
3.08
4×16 CC
4×25 CC
4×35 CC
4×50 SM
4×70 SM
4.8
6.0
7.0
8.0
9.5
1.0
1.2
1.2
1.4
1.4
1.6
1.6
1.6
2.0
2.0
1.8
1.8
1.9
2.0
2.2
22.4
26.3
28.8
30.0
34.8
1679
2240
2744
3485
4565
1290
1632
1897
2301
2883
1.15
0.727
0.524
0.387
0.268
1.91
1.20
0.868
0.641
0.443
4×95 SM
4×120 SM
4×150 SM
4×185 SM
4×240 SM
11.0
12.4
13.8
15.4
17.5
1.6
1.6
1.8
2.0
2.2
2.5
2.5
2.5
2.5
2.5
2.4
2.5
2.6
2.8
3.0
39.1
41.8
46.9
52.5
57.5
6241
7352
8964
10804
13432
3935
4436
5300
6268
7525
0.193
0.153
0.124
0.0991
0.0754
0.320
0.253
0.206
0.164
0.125
4×300 SM 19.6 2.4 3.15 3.2 63.2 17056 9642 0.0601 0.100
