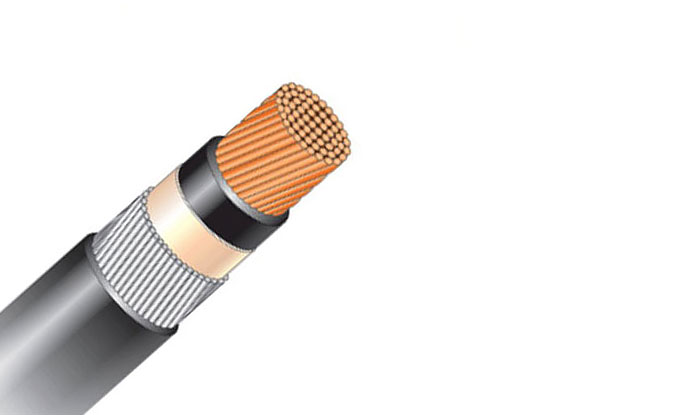

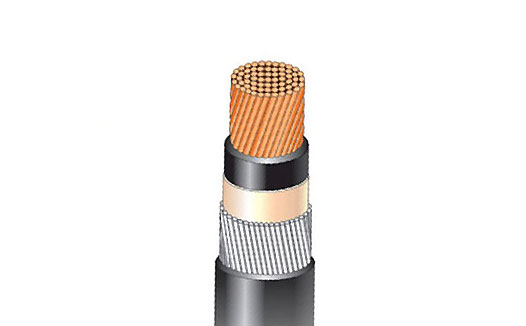

AWA Armor Aluminum Conductor XLPE Insulated Power Cable
AWA Armor Aluminum Conductor XLPE Insulated Power Cable
Get A Quote
Product Inquiry
Product Picture
Product name
AWA Armor Aluminum Conductor XLPE Insulated Power Cable
AWA Armor Aluminum Conductor XLPE Insulated Power Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
overview
Aluminum wire armoured cable is for Iindustrial  wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air. May be embedded in concrete.
Standard:
Our Cables meet the China National standard, and also could meet your request.
BS, DIN, AITM IEC, or as your requirement.
Characteristic
1. The permissble long-term working temperature of the cable conductor: XLPE insulated is 90°C, PVC insulated is 70 °C. During the cable laying, the ambient temperature must be above 0 °C.
2. The permissible bending radius in cable laying and installing.
a). For unarmoured cable, it shall not be less than 6 times of external diameter of cable.
b). For armoured or copper tape screened cable, it shall not be less than 12 times of the external diameter of cable.
c). For the flexible cable with screen layers, it shall not be less than 6 times of the external diameter of cable.
Specifications
Low Voltage
Low Voltage

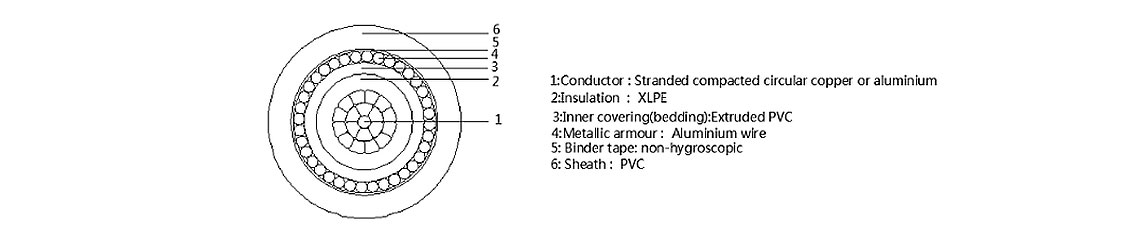

construction
Conductors:
Aluminum
Insulation:
XLPE
Sheath:
PVC
Filler:
Suitable filler
Armored:
steel wire armor
The special type of fire-retardant, flame-resisting, low-halogen, low-fume and non-halogen as well as acid and alkali proof for these cables can be supplied upon request.
parameter
YJV72 YJLV72
Type Specification Outer diameter of conductor Nominal thickness of insulation Diameter of
aluminium wire
Nominal sheath thickness Approx.outer diameter of cable Approx. Weight of cable
Ampacity of cable
 Air Soil
CU AL Cu Al Cu Al
YJV72
YJLV72
mm2 mm mm mm mm mm kg/km kg/km A A A A
1×4 RE 2.24 0.7 1.25 1.8 16.9 228 204 45 35 60 50
1×6 RE 2.76 0.7 1.25 1.8 16.9 258 222 55 45 70 50
1×10 CC 3.8 0.7 1.25 1.8 16.9 321 261 75 60 95 75
1×16 CC 4.8 0.7 1.25 1.8 17.0 357 255 100 80 125 100
1×25 CC 6.0 0.9 1.25 1.8 17.4 482 323 140 115 160 130
1×35 CC 7.0 0.9 1.25 1.8 18.4 597 375 175 140 190 150
1×50 CC 8.4 1.0 1.6 1.8 19.6 788 487 210 170 225 180
1×70 CC 10.0 1.1 1.6 1.8 21.5 1032 598 270 215 280 225
1×95 CC 11.5 1.1 1.6 1.8 23.1 1319 718 340 275 335 270
1×120 CC 13.0 1.2 2.0 1.8 24.7 1657 892 400 320 380 305
1×150 CC 14.5 1.4 2.0 1.8 26.7 1960 1048 460 370 425 340
1×185 CC 16.2 1.6 2.0 1.8 28.8 2375 1205 530 415 480 375
1×240 CC 18.4 1.7 2.0 1.8 31.6 3004 1467 625 490 555 435
1×300 CC 20.5 1.8 2.0 1.9 34.2 3655 1722 720 565 630 495
1×400 CC 23.5 2.0 2.5 2.0 39.3 4725 2245 815 640 705 555
1×500 CC 26.5 2.2 2.5 2.2 44.3 5837 2686 855 680 765 595
1×630 CC 30.0 2.4 2.5 2.3 50.4 7326 3271 980 790 860 680

Note:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
