All Direlectric Self Support (ADSS) Cable
All Direlectric Self Support (ADSS) Cable
All Direlectric Self Support (ADSS) Cable
All Direlectric Self Support (ADSS) Cable
Get A Quote
Product Inquiry
Product Picture
Product name
All Direlectric Self Support (ADSS) Cable
All Direlectric Self Support (ADSS) Cable
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Overview
High capacity cable offer great flexibility for placement on overhead transmission towers, eliminating the need for a support messenger.
• Dry core design and high tension strength capability suitable for toughest environmental and electrical conditions.
• Fit for extra high voltage power lines without interruption of power service to the customers.
• Typical spans with 1%-1.5% installation sag environment.

Application

The"All Dielectric Self-supporting (ADSS)"cable is designed for aerial self supporting application at short, medium and long span distances. ADSS cable offers a rapid and economical means for deployment by cable television operators, telephone companies and power utilities. It is adopted for high voltage, middle, small span conditions in Power Transmission System or mazy terrain such as river spanning, mountains.

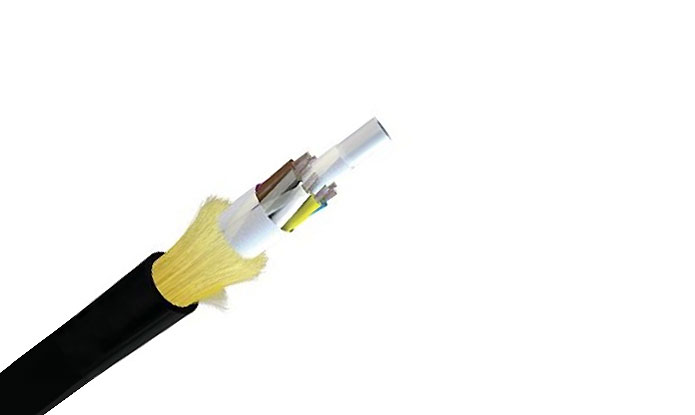

The cable consists of 5 to 36 fibers containing tubes or fillers stranded in up to 3 layers around a central strength member and bound under a PE jacket. Each tube contains 6 -12 fi bers. All the fibers in the cores are filled with water blocking gel. Fillers may be used to preserve the cable geometry. A water swelling tape is helically wrapped around the cable core. Aramid yarns are helically laid to supply peripheral strengthening of the cable. The outer jacket is tightly bounded over the aramid yarn layer. The cable jacket incorporates an optional inner polyethylene jacket and an outer polyethylene or AT (anti-tracking) jacket. When the induction on cable surface is above 12KV, anti-tracking sheath material (AT) will be applied. With AT outer jacket, the maximum electric field strength at operating point can reach 35KV. For long span application, a double jacket design can be considered. An optional ripcord can be put under the jacket layer to facilitate its removal.
Approvals
Telcordia GR-20, RUS 7 CFR 1755.900 (REA PE-90), ICEA S 87-640, IEEE1222
Technical data
a.Temperature range:
during installation: -40 °C up to+70 °C
fixed installed: -30 °C up to+60 °C
d.Minimal inner bending radius: 10×OD for unarmoured cables, 20×OD for armoured cables
Tensile strength at installation: 4000N for unarmored cables, 6000N for armoured cables
Short-term Tensile Strength: 1500N(Several days)
Constant  Tensile Strength: 750N
Resistance to pressure: 200N/100MM
Specifications
Working Temperature 70℃
Working Temperature 70℃
Cold Resistant -40℃
Cold Resistant -40℃
construction
Fiber:
2 - 24 fibers (diameter 250 μm) with coloured primary coating
Loose tube:
of elastomer, filled with jelly, of diameter 2,8 mm for 2 - 16 fibers; or 3,5 mm for 24 fibers, loose laid fibers within tube
Supporting element and anti-rodent protection:
glass fibers or aramid threads, filled area around tube
Watertight element:
swelling tape
Sheath:
LLDPE - linear low-density polyethylene, of 1,2 mm thickness
parameter
Physical Properties
Mechanical Properties
SPAN(M) ICE+WIND:0MM+35M/SEC ICE+WIND:12MM+30M/SEC
CABLE O.D.(MM/IN) CABLE WEIGHT (KG/KM)/(LB/KFT) MAX.WORKING TENSION(N/LB) MAX .SAG(%) CABLE O.D.(MM/IN) CABLE WEIGHT (KG/KM)/(LB/KFT) MAX.WORKING TENSION(N/LB) MAX .SAG(%)
100 13.9/5.472 152/102.01 7578/1704 2 13.8/0.543 150.0/100.67 6621/1489 2
200 14.3/0.562 161/108.05 10430/2346 3 14.1/0.555 157.0/105.37 9000/2024 3
400 15.9/0.625 199/133.56 23221/5223 3 15.4/0.606 187.0/125.50 19225/4331 3
500 16.7/0.657 220/147.65 30590/6881 3 16.1/0.633 204.0/136.91 24885/5598 3
600 16.3/0.641 209/140.27 26952/6063 4 15.7/0.618 196.0/131.54 22154/4983 4
800 16.5/0.649 216/144.97 29452/6625 5 15.9/0.625 201.0/134.90 24042/5408 6
1000 16.7/0.657 221/148.32 31271/7034 6 16.1/0.633 204.0/136.91 24407/5490 6
* Above table do not cover all of available types. Other ADSS cables can be manufactured upon customer's request according to different span and sag environment.
Minimum Bending Radius:   Maximum Compressive Load: 4000N
Under installation: 20×OD Repeated Impact: 4.4 N.m (J)
During operation 10×OD for unarmoured cables Twist (Torsion): 180×10 times, 125×OD
  20×OD for armoured cables Cyclic Flexing: 100 cycles
Temperature Range:
Operating Temperature Range: -40℃(-40℉) to +70℃(+158℉) Crush Resistance: 263N/cm (1250lb/in)
Storage Temperature Range: -50℃(-58℉) to +70℃(+158℉)
