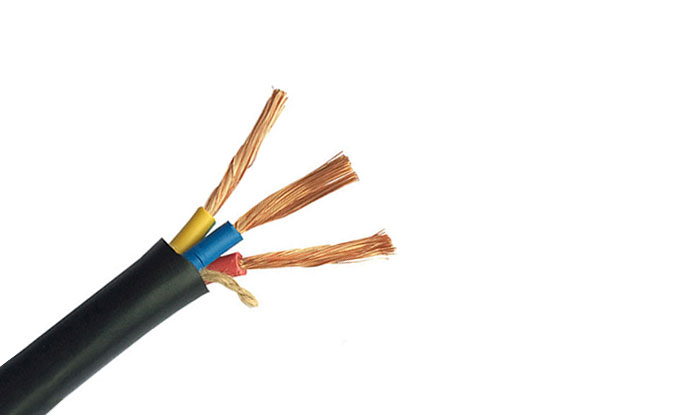

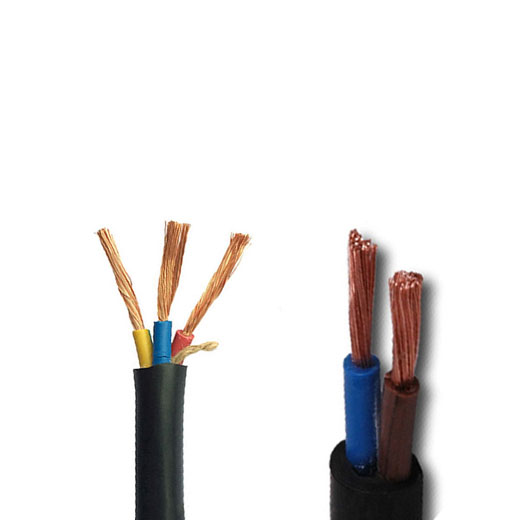

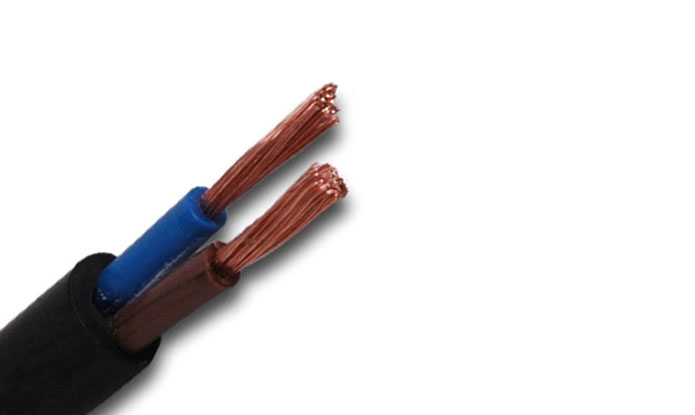

German Standard Industrial Cable (H)03Z1Z1-F/(H)05Z1Z1-F
German Standard Industrial Cable (H)03Z1Z1-F/(H)05Z1Z1-F
German Standard Industrial Cable (H)03Z1Z1-F/(H)05Z1Z1-F
Get A Quote
Product Inquiry
Product Picture
Product name
German Standard Industrial Cable (H)03Z1Z1-F/(H)05Z1Z1-F
German Standard Industrial Cable (H)03Z1Z1-F/(H)05Z1Z1-F
OVERVIEW
SPECIFICATIONS
CONSTRUCTION
PARAMETER
LEAVE YOUR FEEDBACK
Application
These cables may be used when halogen-free, low smoke and corrosive gas properties are required in case of fire. For moderate demands in the house, kitchen and office, for house equipment in damp rooms (for example: washing machines, dryers and refrigerators). Suitable for cooking and heating equipment, providing that the cable is not in contact with hot components or heat radiation. Not suitable for use in high temperature areas (like in lighting equipment), outside buildings, in industrial oragricultural buildings, connection of electrical power tools.
Standards:
<HAR> HD21.14 S1, VDE-0281 Part-14, VDE 0482-332-1-2, CEI 20-20/14, CEI 20-35 (EN60332-1), CEI 20-37 (EN50267), EN50363, CE low voltage directive 73/23/EEC & 93/68/EEC, ROHS compliant.
Technical Characteristics:
- Working voltage: 300/300 volts(H03Z1Z1-F), 300/500 volts(H05Z1Z1-F)
- Test voltage: 2000 volts(H03Z1Z1-F), 2500 volts(H05Z1Z1-F)
- Flexing bending radius: 7.5 x Ø
- Fixed bending radius: 4.0 x Ø
- Flexing Temperature: -5º C to +70º C
- Fixed Temperature: -40º C to +70º C
- Short circuit temperature: +160º C
- Insulation resistance: 20 MΩ x km
- Smoke density acc. to EN 50268 / IEC 61034
- Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
- Flame test: flame-retardant acc. to EN 50265-2-1, IEC 60332.1
Specifications
ROHS
ROHS
Low Voltage
Low Voltage
Working Temperature 70℃
Working Temperature 70℃
LSZH
LSZH
Cold Resistant -40℃
Cold Resistant -40℃
Flame Retardant
Flame Retardant

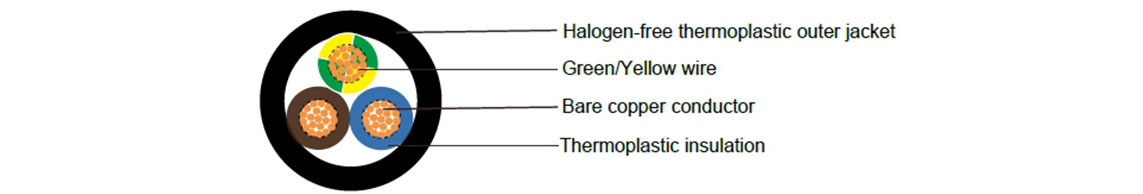

construction
Conductor:
Fine bare copper strands
Strands to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5, HD 383
Insulation:
Thermoplastic TI6 core insulation
Color code:
VDE-0293-308
Grounding:
Green-yellow grounding (3 conductors and above)
Outer Jacket:
Halogen-fee thermoplastic TM7 outer jacket
Sheath Colour:
Black (RAL 9005) or White (RAL 9003)
parameter
(H)03 Z1Z1-F
(H)05 Z1Z1-F
AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # XMM² NOMINAL THICKNESS OF INSULATION MM NOMINAL THICKNESS OF SHEATH MM NOMINAL OVERALL DIAMETER MM NOMINAL COPPER WEIGHT KG/KM NOMINAL WEIGHT KG/KM
(H)03 Z1Z1-F
20(16/32) 2 x 0. 5 0.5 0.6 5.0 9.6 39
20(16/32) 3 x 0. 5 0.5 0.6 5.3 14.4 46
20(16/32) 4 x 0. 5 0.5 0.6 5.8 19.2 56
18(24/32) 2 x 0.75 0.5 0.6 5.4 14.4 47
18(24/32) 3 x 0.75 0.5 0.6 5.7 21.6 55
18(24/32) 4 x 0.75 0.5 0.6 6.3 29.0 69
AWG NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # XMM² NOMINAL THICKNESS OF INSULATION MM NOMINAL THICKNESS OF SHEATH MM NOMINAL OVERALL DIAMETER MM NOMINAL COPPER WEIGHT KG/KM NOMINAL WEIGHT KG/KM
(H)05 Z1Z1-F
18(24/32) 2 x 0.75 0.6 0.8 6.2 14.4 58
18(24/32) 3 x 0.75 0..7 0.8 6.6 21.6 68
18(24/32) 4 x 0.75 0.8 0.8 7.1 29 81
18(24/32) 5 x 0.75 0.8 0.9 8 36 102
17(32/32) 2 x 1 0.6 0.8 6.6 19 67
17(32/32) 3 x 1 0.8 0.8 6.9 29 81
17(32/32) 4 x 1 0.8 0.9 7.7 38 101
17(32/32) 5 x 1 0.8 0.9 8.4 48 107
16(30/30) 2 x 1.5 0..7 0.8 7.4 29 87
16(30/30) 3 x 1.5 0.8 0.9 8.1 43 109
16(30/30) 4 x 1.5 0.8 1.0 9 58 117
16(30/30) 5 x 1.5 0.8 1.1 10 72 169
14(50/30) 2 x 2.5 0.8 1.0 9.3 48 138
14(50/30) 3 x 2.5 1.0 1.1 10.1 72 172
14(50/30) 4 x 2.5 1.0 1.1 11 96 210
14(50/30) 5 x 2.5 1.0 1.2 12.3 120 260
12(56/28) 2 x 4 0.8 1.1 10.6 76.8 190
12(56/28) 3 x 4 1.0 1.2 11.5 115.2 242
12(56/28) 4 x 4 1.0 1.4 12.5 153.6 298
12(56/28) 5 x 4 1.0 1.4 14.1 192 371
