Halogen Free Cable H03Z1Z1H2-F

Get A Quote

Product Inquiry

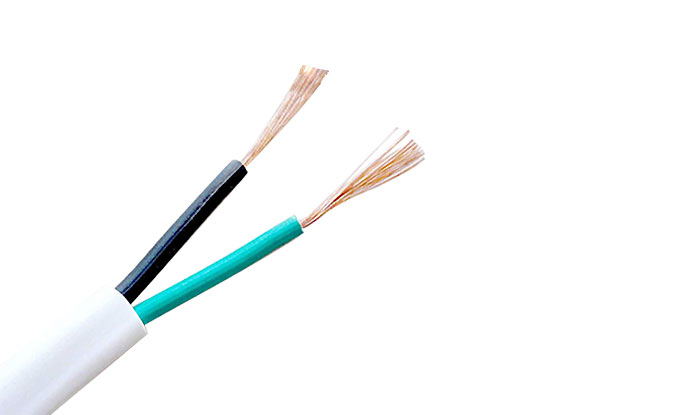

Product Picture

Product name

Halogen Free Cable H03Z1Z1H2-F

OVERVIEW

SPECIFICATIONS

CONSTRUCTION

PARAMETER

LEAVE YOUR FEEDBACK

Application

This product is suitable for rated voltage of 300/300V AC power, household appliances, power tools and various electrical equipment and tools for mobile cable.

Description

■Standard: EN50525
■Rated temperature:70℃
■Rated voltage 300/300V
■Approval: VDE

Specifications

Low Voltage

LSZH

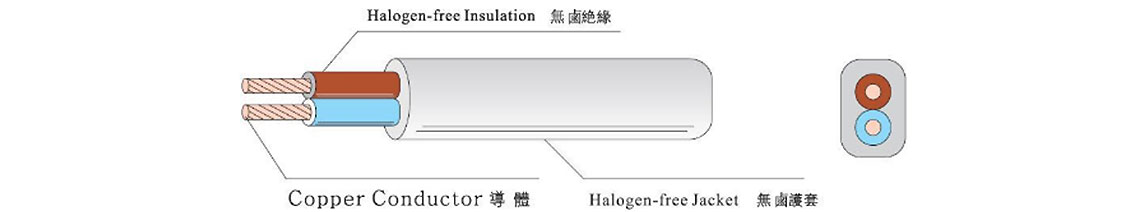

construction

■Bare stranded copper conductor
■Halogen-free Insulation
■Halogen-free Jacket

parameter

H03Z1Z1H2-F

No.of Core	Conductor		Insulation		Jacket		20℃ （Ω.KM）
No.of Core	Sectional area (mm²)	Construction	Nom.Thick (mm)	Nom.Diam (mm)	Nom.Thick (mm)	Nom.Diam (mm)	20℃ （Ω.KM）
2	0.5	16/0.2	0.50	1.95	0.60	3.3*5.4	39.00
2	0.75	24/0.2	0.50	2.15	0.60	3.45*5.6	26.00
