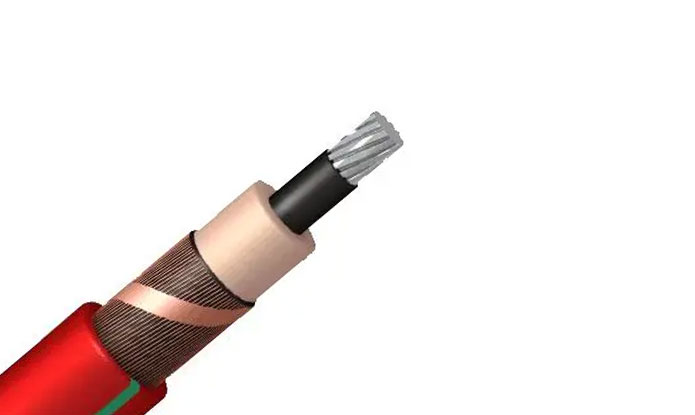

Medium voltage aluminium cable, HEPR insulation, halogen-free sheath, for the transmission and distribution of energy in medium voltage networks
| Size(mm2) | Conductor Diameter(mm) | Overall Diameter(mm) | Weight (kg/km) |
Max. DC resistance at 20C (Ω/km) |
| 1X50/16* | 18,0 | 26,2 | 790 | 0.641 |
| 1X95/16 | 20,8 | 29,0 | 980 | 0.320 |
| 1X150/16* | 23,5 | 32,0 | 1205 | 0.206 |
| 1X240/16* | 27,6 | 36,1 | 1570 | 0.125 |
| 1X400/16* | 32,8 | 41,4 | 2115 | 0.0778 |
| 1X500/16 | 36,2 | 44,5 | 2625 | 0.0605 |
| 1X630/16* | 40,8 | 49,4 | 3075 | 0.0469 |
